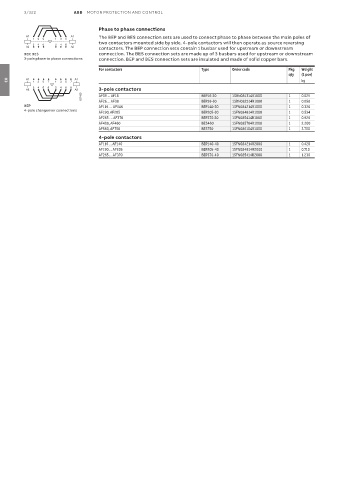

Page 398 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/322 ABB MOTOR PROTECTION AND CONTROL

Phase to phase connections
A1 A1 The BEP and BES connection sets are used to connect phase to phase between the main poles of
1 3 5 1 3 5
2 4 6 2 4 6 two contactors mounted side by side. 4-pole contactors will then operate as source reversing
A2 A2 contactors. The BEP connection sets contain 1 busbar used for upstream or downstream
BEP, BES connection. The BES connection sets are made up of 3 busbars used for upstream or downstream
3-pole phase to phase connections connection. BEP and BES connection sets are insulated and made of solid copper bars.
For contactors Type Order code Pkg Weight
qty (1 pce)
A1 A1
1 3 5 7 1 3 5 7 kg
03
2 4 6 8 2 4 6 8
A2 A2 3-pole contactors
E0743D AF09 ... AF16 BEP16-30 1SBN081314R1000 1 0.025
BEP AF26 ... AF38 BEP38-30 1SBN082314R1000 1 1 0.050
BEP140-30
1SFN084214R1000
AF116 … AF146
0.320
4-pole changeover connections
AF190, AF205 BEP205-30 1SFN084814R1000 1 0.534
AF265 … AF370 BEP370-30 1SFN085414R1000 1 0.926
AF400, AF460 BES460 1SFN085704R1000 1 2.200
AF580, AF750 BES750 1SFN086104R1000 1 3.700
4-pole contactors
AF116 ... AF140 BEP140-40 1SFN084214R2000 1 0.420
AF190 ... AF205 BEP205-40 1SFN084814R2000 1 0.710
AF265 ... AF370 BEP370-40 1SFN085414R2000 1 1.230
