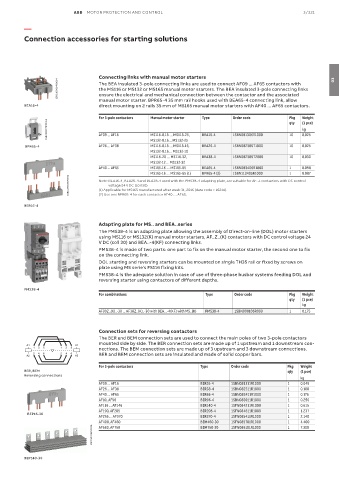

ABB MOTOR PROTECTION AND CONTROL 3/321

—

Connection accessories for starting solutions

Connecting links with manual motor starters 03
1SBC100014V0014 The BEA insulated 3-pole connecting links are used to connect AF09 ... AF65 contactors with
the MS116 or MS132 or MS165 manual motor starters. The BEA insulated 3-pole connecting links
ensure the electrical and mechanical connection between the contactor and the associated
manual motor starter. BPR65-4 35 mm rail hooks used with BEA65-4 connecting link, allow
BEA16-4 direct mounting on 2 rails 35 mm of MS165 manual motor starters with AF40 ... AF65 contactors.
For 3-pole contactors Manual motor starter Type Order code Pkg Weight
1SBC100078V0014 AF09 ... AF16 MS116-0.16 … MS116-25, BEA16-4 1SBN081306T1000 10 kg
(1 pce)
qty
0.025
MS116-0.16 … MS116-16,
BPR65-4 AF26 ... AF38 MS132-0.16… MS132-25 BEA26-4 1SBN082306T1000 10 0.025
MS132-0.16 ... MS132-10
MS116-20 … MS116-32, BEA38-4 1SBN082306T2000 10 0.030
MS132-12 ... MS132-32
AF40 ... AF65 MS165-16 … MS165-65 BEA65-4 1SBN083406R1000 1 0.090
MS165-16 … MS165-65 (1) BPR65-4 (2) 1SBN113405R1000 1 0.007
1SBC100016V0014 Note: BEA16-4, BEA26-4 and BEA38-4 used with the PMS38-4 adapting plate, are suitable for AF..Z contactors with DC control
voltage 24 V DC (coil 30).
(1) Applicable for MS165 manufactured after week 31, 2016 (date code > 16214).
(2) Use one BPR65-4 for each contactor AF40 … AF65.

BER16-4

Adapting plate for MS.. and BEA..series
The PMS38-4 is an adapting plate allowing the assembly of Direct-on-line (DOL) motor starters
using MS116 or MS132(K) manual motor starters, AF..Z..(K) contactors with DC control voltage 24
V DC (coil 30) and BEA..-4(KF) connecting links.
PMS38-4 is made of two parts: one part to fix on the manual motor starter, the second one to fix
on the connecting link.
DOL starting and reversing starters can be mounted on single TH35 rail or fixed by screws on
plate using MS serie’s FS116 fixing kits.
PMS38-4 is the adequate solution in case of use of three-phase busbar systems feeding DOL and
reversing starter using contactors of different depths.
PMS38-4
For combinations Type Order code Pkg Weight
qty (1 pce)
kg
AF09Z..(K)..-30 ... AF38Z..(K)..-30 with BEA...-4(KF) with MS..(K) PMS38-4 1SBN090106R000 1 0.175

Connection sets for reversing contactors
The BER and BEM connection sets are used to connect the main poles of two 3-pole contactors
mounted side by side. The BER connection sets are made up of 1 upstream and 1 downstream con-
A1 A1
1 3 5 1 3 5 nections. The BEM connection sets are made up of 3 upstream and 3 downstream connections.
2 4 6 2 4 6 BER and BEM connection sets are insulated and made of solid copper bars.
A2 A2
For 3-pole contactors Type Order code Pkg Weight
BER, BEM qty (1 pce)
Reversing connections
kg
AF09 ... AF16 BER16-4 1SBN081311R1000 1 0.045
AF26 ... AF38 BER38-4 1SBN082311R1000 1 0.100
AF40 ... AF65 BER65-4 1SBN083411R1000 1 0.175
AF80, AF96 BER96-4 1SBN083911R1000 1 0.250
AF116 ... AF146 BER140-4 1SFN084211R1000 1 0.615
AF190, AF205 BER205-4 1SFN084811R1000 1 1.237
BEP16-30
AF265 ... AF370 BER370-4 1SFN085411R1000 1 2.140
AF400, AF460 BEM460-30 1SFN085701R1000 1 1 4.400
1SFC101052V0001
7.300
BEM750-30
1SFN086101R1000
AF580, AF750
BEP140-30
