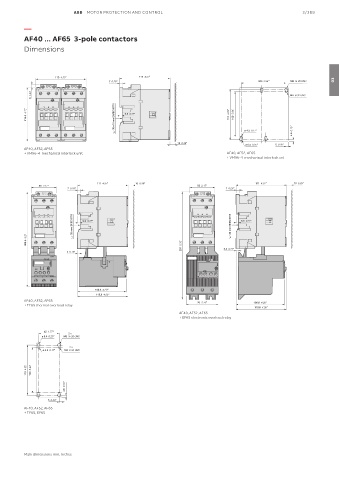

ABB MOTOR PROTECTION AND CONTROL 3/389

—

AF40 ... AF65 3-pole contactors
Dimensions

110 4.33" 111 4.37"
7 0.28" 100 3.94" M6 ¼-20 UNC 03
6 0.24" M4 8-32 UNC

119.5 4.70" 35 x 15 mm EN/IEC 60715 5 5.5 0.22"" 2 110 4.33" 100 3.94"
.5
0.2
ø 4.2 0.17" 4.6 0.18"

10 0.39"
ø 6.4 0.25" 5 0.20"
AF40, AF52, AF65
+ VM96-4 mechanical interlock unit AF40, AF52, AF65
+ VM96-4 mechanical interlock set

111 4.37" 10 0.39" 111 4.37" 10 0.39"
55 2.17" 55 2.17"
7 0.28" 7 0.28"

35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22"

208.5 8.21"

4 0.16" 237 9.33" 5.4 0.21"

106.8 4.20"
110.6 4.35"
AF40, AF52, AF65 70 2.76" 106.8 4.20"
+ TF65 thermal overload relay
110.6 4.35"
AF40, AF52, AF65
+ EF65 electronic overload relay
45 1.77"
2 x
ø 6.4 0.25" M6 ¼-20 UNC
2 x
ø 4.2 0.17" M4 8-32 UNC

110 4.33" 100 3.94"

4.6 0.18"

5 0.20"
AF40, AF52, AF65
+ TF65, EF65

Main dimensions mm, inches
