3/394 ABB MOTOR PROTECTION AND CONTROL

—

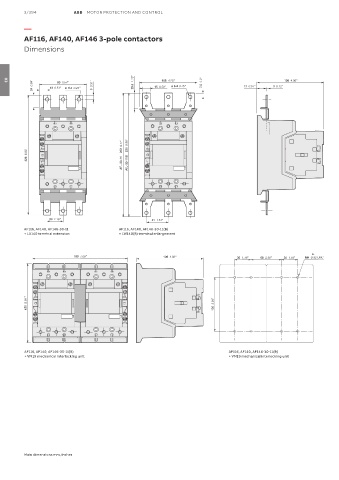

AF116, AF140, AF146 3-pole contactors
Dimensions

24 0.94" 13 0.51" ø 6.4 0.25" 8 0.31" 17 0.67" 29.5 1.16" 3 0.12" 126 4.96" 108 4.25" 13 0.51" 7.5 0.3" ø 6.4 0.25" 8 0.31" 3 0.12" 126 4.96" 3 0.12" 126 4.96"
24 0.94"
90 3.54"
90 3.54"
03
17 0.67"
17 0.67"
ø 6.4 0.25"
15 0.59"

226 8.90" AF..-30-11 233 9.17" AF..-30-11B 228 8.98" 226 8.90"

30 1.18" 41 1.61" 30 1.18"
AF116, AF140, AF146-30-11 AF116, AF140, AF146-30-11(B)
+ LX140 terminal extension + LW140(B) terminal enlargement

8x
180 7.09" 180 7.09" 126 4.96" 126 4.96" 30 1.18" 60 2.36" 30 1.18" M4 8-32 UNC

150 5.91" 150 5.91" 100 3.94"

AF116, AF140, AF146-30-11(B) AF116, AF140, AF146-30-11(B)
+ VM19 mechanical interlocking unit + VM19 mechanical interlocking unit

Main dimensions mm, inches
