ABB MOTOR PROTECTION AND CONTROL 3/391

—

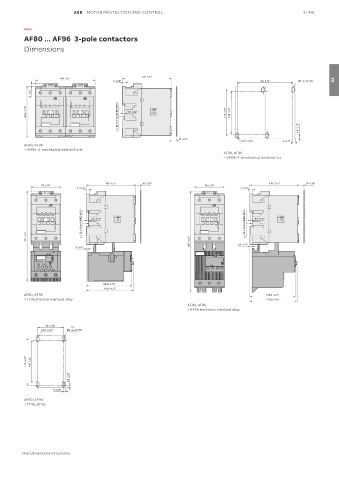

AF80 ... AF96 3-pole contactors
Dimensions

116 4.57"
140 5.51"
7 0.28" 130 5.12" M6 ¼-20 UNC 03
6 0.24"
35 x 15 mm EN/IEC 60715
119.5 4.70" 5.5 0.22" 110 4.33" 100 3.94"

4.6 0.18"

10 0.39"
ø 6.4 0.25" 5 0.20"
AF80, AF96
+ VM96-4 mechanical interlock unit
AF80, AF96
+ VM96-4 mechanical interlock set

116 4.57" 10 0.39" 116 4.57" 10 0.39"
70 2.76" 70 2.76"
7 0.28" 7 0.28"

35 x 15 mm EN/IEC 60715 5.5 0.22" 35 x 15 mm EN/IEC 60715 5.5 0.22"

211 8.31"

4 0.16" 237 9.33" 5.4 0.21"

106.8 4.20"
110.9 4.37"
AF80, AF96 106.8 4.20"
+ TF96 thermal overload relay 110.6 4.35"
AF80, AF96
+ EF96 electronic overload relay

60 2.36"
2 x
ø 6.4 0.25" M6 ¼-20 UNC

110 4.33" 100 3.94"

4.6 0.18"

5 0.20"
AF80, AF96
+ TF96, EF96

Main dimensions mm, inches
