3/392 ABB MOTOR PROTECTION AND CONTROL

—

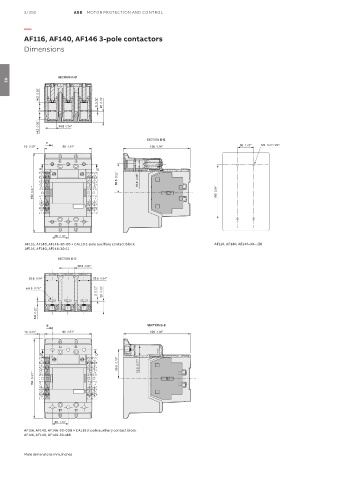

AF116, AF140, AF146 3-pole contactors
Dimensions

SECTION D-D
03
14.2 0.56"
3 0.12" 20 0.79"

14.2 0.56" 14.2 0.56"

SECTION E-E
E
10 0.39" 90 3.54" 126 4.96" 30 1.18" M4 8-32 UNC

D D
55.5 0.22" 19.5 4.96"

150 5.91" 100 3.94"

30 1.18"
AF116, AF140, AF146-30-00 + CAL19 2-pole auxiliary contact block AF116, AF140, AF146-30-..(B)
AF116, AF140, AF146-30-11
SECTION D-D
22.8 0.90"

23.8 0.94" 23.8 0.94"
3 0.12" 20 0.79"
ø 6.5 0.26"

5.5 0.22"

E SECTION E-E
10 0.39" 90 3.54" 126 4.96"

D D
55.5 2.18" 19.5 0.77"

150 5.91"

30 1.18"
AF116, AF140, AF146-30-00B + CAL19 2-pole auxiliary contact block
AF116, AF140, AF146-30-11B

Main dimensions mm, inches
