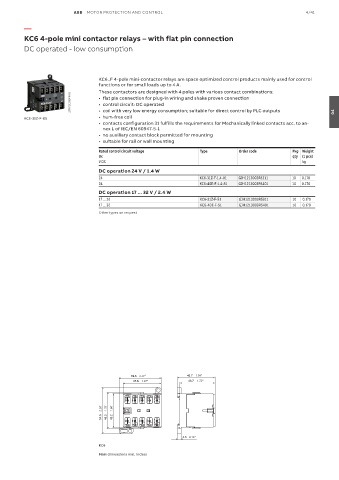

ABB MOTOR PROTECTION AND CONTROL 4/41

—
KC6 4-pole mini contactor relays – with flat pin connection

DC operated - low consumption

KC6..F 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
These contactors are designed with 4 poles with various contact combinations:
2CDC211033F0011 • flat pin connection for plug-in wiring and shake proven connection
• control circuit: DC operated
• coil with very low energy consumption; suitable for direct control by PLC outputs
KC6-31Z-F-05 • hum-free coil 04
• contacts configuration 31 fulfills the requirements for Mechanically linked contacts acc. to an-
nex L of IEC/EN 60947-5-1
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting

Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
V DC kg
DC operation 24 V / 1.4 W
24 KC6-31Z-F-1.4-81 GJH1213003R8311 10 0.170
24 KC6-40E-F-1.4-81 GJH1213003R8401 10 0.170
DC operation 17 ... 32 V / 2.4 W
17 ... 32 KC6-31Z-F-51 GJH1213003R5311 10 0.170
17 ... 32 KC6-40E-F-51 GJH1213003R5401 10 0.170
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
KC6
Main dimensions mm, inches
