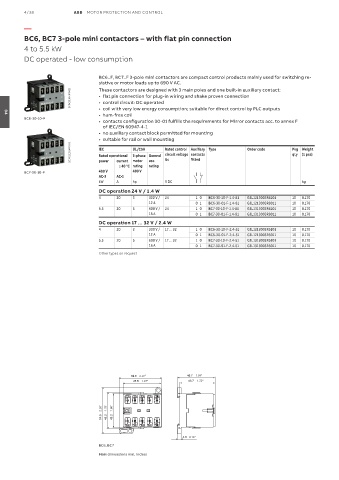

4/38 ABB MOTOR PROTECTION AND CONTROL

—
BC6, BC7 3-pole mini contactors – with flat pin connection

4 to 5.5 kW
DC operated - low consumption

BC6..F, BC7..F 3-pole mini contactors are compact control products mainly used for switching re-
sistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211041F0011 • flat pin connection for plug-in wiring and shake proven connection
• control circuit: DC operated
• coil with very low energy consumption; suitable for direct control by PLC outputs
• hum-free coil
04
BC6-30-10-F
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for rail or wall mounting
2CDC211024F0011 IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
qty
(1 pce)
circuit voltage contacts
3-phase General
Rated operational
Uc
fitted
power
current
rating
rating
θ ≤ 40 °C motor use
BC7-30-10-F 400 V 480 V
AC-3 AC-1
kW A hp V DC kg
DC operation 24 V / 1.4 W
4 20 3 300 V / 24 1 0 BC6-30-10-F-1.4-81 GJL1213003R8101 10 0.170
12 A 0 1 BC6-30-01-F-1.4-81 GJL1213003R8011 10 0.170
5.5 20 5 600 V / 24 1 0 BC7-30-10-F-1.4-81 GJL1313003R8101 10 0.170
16 A 0 1 BC7-30-01-F-1.4-81 GJL1313003R8011 10 0.170
DC operation 17 … 32 V / 2.4 W
4 20 3 300 V / 17 ... 32 1 0 BC6-30-10-F-2.4-51 GJL1213003R5101 10 0.170
12 A 0 1 BC6-30-01-F-2.4-51 GJL1213003R5011 10 0.170
5.5 20 5 600 V / 17 ... 32 1 0 BC7-30-10-F-2.4-51 GJL1313003R5101 10 0.170
16 A 0 1 BC7-30-01-F-2.4-51 GJL1313003R5011 10 0.170
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
BC6, BC7
Main dimensions mm, inches
