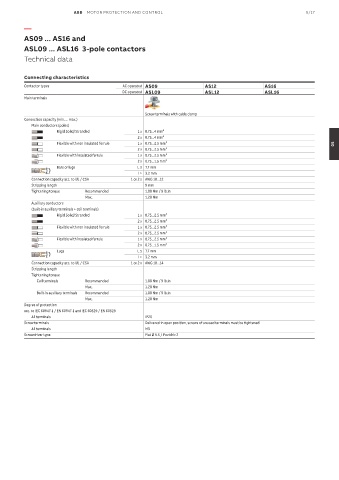

Page 667 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 5/17

—
AS09 ... AS16 and

ASL09 ... ASL16 3-pole contactors
Technical data

Connecting characteristics
Contactor types AC operated AS09 AS12 AS16
DC operated ASL09 ASL12 ASL16
Main terminals

Screw terminals with cable clamp
Connection capacity (min. ... max.)
Main conductors (poles)
Rigid Solid/Stranded 1 x 0.75...4 mm²
2 x 0.75...4 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm² 05
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...1.5 mm²
Bars or lugs L ≤ 7.7 mm
l L
l > 3.2 mm
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...12
Stripping length 9 mm
Tightening torque Recommended 1.00 Nm / 9 lb.in
Max. 1.20 Nm
Auxiliary conductors
(built-in auxiliary terminals + coil terminals)
Rigid Solid/Stranded 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...1.5 mm²
Lugs L ≤ 7.7 mm
l L
l > 3.2 mm
Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...14
Stripping length
Tightening torque
Coil terminals Recommended 1.00 Nm / 9 lb.in
Max. 1.20 Nm
Built-in auxiliary terminals Recommended 1.00 Nm / 9 lb.in
Max. 1.20 Nm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529
All terminals IP20
Screw terminals Delivered in open position, screws of unused terminals must be tightened
All terminals M3
Screwdriver type Flat Ø 5.5 / Pozidriv 2
