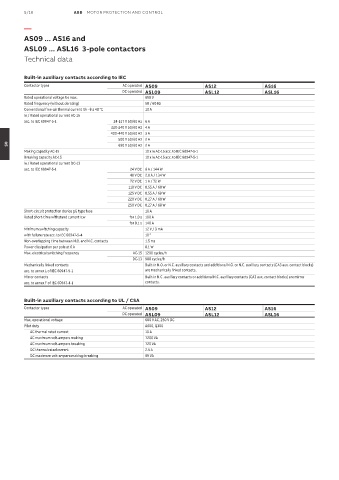

Page 668 - ABB_Motor _Protection_and_Control_catalogue_20221216

5/18 ABB MOTOR PROTECTION AND CONTROL

—
AS09 ... AS16 and

ASL09 ... ASL16 3-pole contactors
Technical data

Built-in auxiliary contacts according to IEC
Contactor types AC operated AS09 AS12 AS16
DC operated ASL09 ASL12 ASL16
Rated operational voltage Ue max. 690 V
Rated frequency (without derating) 50 / 60 Hz
Conventional free-air thermal current Ith - θ ≤ 40 °C 10 A
Ie / Rated operational current AC-15
acc. to IEC 60947-5-1 24-127 V 50/60 Hz 6 A
220-240 V 50/60 Hz 4 A
400-440 V 50/60 Hz 3 A
500 V 50/60 Hz 2 A
690 V 50/60 Hz 2 A
05
Making capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Breaking capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Ie / Rated operational current DC-13
acc. to IEC 60947-5-1 24 V DC 6 A / 144 W
48 V DC 2.8 A / 134 W
72 V DC 1 A / 72 W
110 V DC 0.55 A / 60 W
125 V DC 0.55 A / 69 W
220 V DC 0.27 A / 60 W
250 V DC 0.27 A / 68 W
Short-circuit protection device gG type fuse 10 A
Rated short-time withstand current Icw for 1.0 s 100 A
for 0.1 s 140 A
Minimum switching capacity 12 V / 3 mA
with failure rate acc. to IEC 60947-5-4 10 -7
Non-overlapping time between N.O. and N.C. contacts 1.5 ms
Power dissipation per pole at 6 A 0.1 W
Max. electrical switching frequency AC-15 1200 cycles/h
DC-13 900 cycles/h
Mechanically linked contacts Built-in N.O. or N.C. auxiliary contacts and additional N.O. or N.C. auxiliary contacts (CA3 aux. contact blocks)
acc. to annex L of IEC 60947-5-1 are mechanically linked contacts.
Mirror contacts Built-in N.C. auxiliary contacts or additional N.C. auxiliary contacts (CA3 aux. contact blocks) are mirror
acc. to annex F of IEC 60947-4-1 contacts.

Built-in auxiliary contacts according to UL / CSA
Contactor types AC operated AS09 AS12 AS16
DC operated ASL09 ASL12 ASL16
Max. operational voltage 600 V AC, 250 V DC
Pilot duty A600, Q300
AC thermal rated current 10 A
AC maximum volt-ampere making 7200 VA
AC maximum volt-ampere breaking 720 VA
DC thermal rated current 2.5 A
DC maximum volt-ampere making-breaking 69 VA
