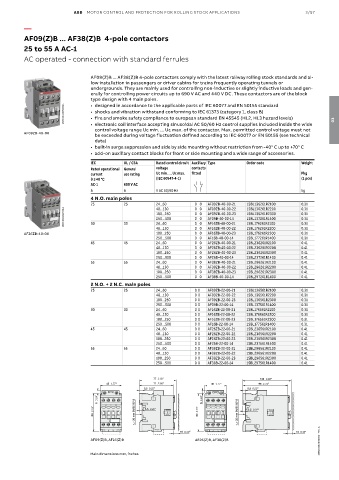

Page 109 - Contactors_Catalogue

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/57

—
AF09(Z)B ... AF38(Z)B 4-pole contactors

25 to 55 A AC-1
AC operated - connection with standard ferrules

AF09(Z)B ... AF38(Z)B 4-pole contactors comply with the latest railway rolling stock standards and al-
low installation in passengers or driver cabins for trains frequently operating tunnels or
undergrounds. They are mainly used for controlling non-inductive or slightly inductive loads and gen-
erally for controlling power circuits up to 690 V AC and 440 V DC. These contactors are of the block
type design with 4 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC101020V0014 • shocks and vibration withstand conforming to IEC 61373 (category 1, class B) 03
• fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
• electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide
control voltage range Uc min. ... Uc max. of the contactor. Max. permitted control voltage must not
AF09ZB-40-00
be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical
data)
• built-in surge suppression and side by side mounting without restriction from -40° C up to +70° C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General voltage contacts
current use rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C (IEC 60947-4-1) (1 pce)
AC-1 600 V AC
A A V AC 50/60 Hz kg
4 N.O. main poles
25 25 24...60 0 0 AF09ZB-40-00-21 1SBL136261R2100 0.31
0 0
1SBL136261R2200
AF09ZB-40-00-22
48...130
0.31
1SBC101021V0014 100...250 0 0 AF09ZB-40-00-23 1SBL136261R2300 0.31
1SBL137261R1400
AF09B-40-00-14
0 0
250…500
0.31
24...60
30
30
0 0
48...130 0 0 AF16ZB-40-00-21 1SBL176261R2100 0.31
AF16ZB-40-00-22
0.31
1SBL176261R2200
AF26ZB-40-00 100...250 0 0 AF16ZB-40-00-23 1SBL176261R2300 0.31
250…500 0 0 AF16B-40-00-14 1SBL177261R1400 0.31
45 45 24...60 0 0 AF26ZB-40-00-21 1SBL236261R2100 0.41
48...130 0 0 AF26ZB-40-00-22 1SBL236261R2200 0.41
100...250 0 0 AF26ZB-40-00-23 1SBL236261R2300 0.41
250…500 0 0 AF26B-40-00-14 1SBL237261R1400 0.41
55 55 24...60 0 0 AF38ZB-40-00-21 1SBL296261R2100 0.41
48...130 0 0 AF38ZB-40-00-22 1SBL296261R2200 0.41
100...250 0 0 AF38ZB-40-00-23 1SBL296261R2300 0.41
250…500 0 0 AF38B-40-00-14 1SBL297261R1400 0.41
2 N.O. + 2 N.C. main poles
25 25 24...60 0 0 AF09ZB-22-00-21 1SBL136561R2100 0.31
48...130 0 0 AF09ZB-22-00-22 1SBL136561R2200 0.31
100...250 0 0 AF09ZB-22-00-23 1SBL136561R2300 0.31
250…500 0 0 AF09B-22-00-14 1SBL137561R1400 0.31
30 30 24...60 0 0 AF16ZB-22-00-21 1SBL176561R2100 0.31
48...130 0 0 AF16ZB-22-00-22 1SBL176561R2200 0.31
100...250 0 0 AF16ZB-22-00-23 1SBL176561R2300 0.31
250…500 0 0 AF16B-22-00-14 1SBL177561R1400 0.31
45 45 24...60 0 0 AF26ZB-22-00-21 1SBL236561R2100 0.41
48...130 0 0 AF26ZB-22-00-22 1SBL236561R2200 0.41
100...250 0 0 AF26ZB-22-00-23 1SBL236561R2300 0.41
250…500 0 0 AF26B-22-00-14 1SBL237561R1400 0.41
55 55 24...60 0 0 AF38ZB-22-00-21 1SBL296561R2100 0.41
48...130 0 0 AF38ZB-22-00-22 1SBL296561R2200 0.41
100...250 0 0 AF38ZB-22-00-23 1SBL296561R2300 0.41
250…500 0 0 AF38B-22-00-14 1SBL297561R1400 0.41
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC ø 4.2 0.17" M4 8-32 UNC
5.5 0.22"
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
1SBC100120S0201 - Rev. A
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09(Z)B, AF16(Z)B AF26(Z)B, AF38(Z)B
Main dimensions mm, inches
