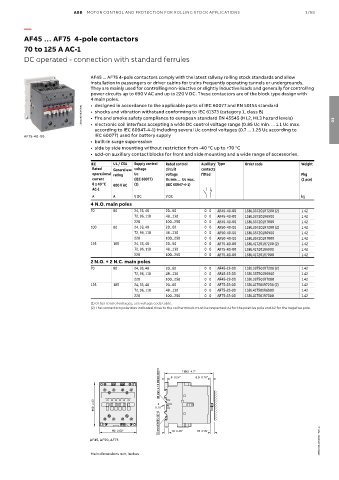

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/59

—

AF45 … AF75 4-pole contactors
70 to 125 A AC-1
DC operated - connection with standard ferrules

AF45 ... AF75 4-pole contactors comply with the latest railway rolling stock standards and allow
installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They are mainly used for controlling non-iductive or slightly inductive loads and generally for controlling
power circuits up to 690 V AC and up to 220 V DC. These contactors are of the block type design with
4 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
1SBC582703F0301 • shocks and vibration withstand conforming to IEC 61373 (category 1, class B) 03
• fire and smoke safety compliance to european standard EN 45545 (HL2, HL3 hazard levels)
• electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max.
according to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
AF75-40-00 IEC 60077) used for battery supply
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front and side mounting and a wide range of accessories.
IEC UL / CSA Supply control Rated control Auxiliary Type Order code Weight
Rated General use voltage circuit contacts
operational rating Uc voltage fitted Pkg
current (IEC 60077) Uc min. … Uc max. (1 pce)
θ ≤ 40 °C 600 V AC (1) (IEC 60947-4-1)
AC-1
A A V DC V DC kg
4 N.O. main poles
70 80 24, 33, 48 20...60 0 0 AF45-40-00 1SBL337201R7200 (2) 1.42
72, 96, 110 48...130 0 0 AF45-40-00 1SBL337201R6900 1.42
220 100...250 0 0 AF45-40-00 1SBL337201R7000 1.42
100 80 24, 33, 48 20...60 0 0 AF50-40-00 1SBL357201R7200 (2) 1.42
72, 96, 110 48...130 0 0 AF50-40-00 1SBL357201R6900 1.42
220 100...250 0 0 AF50-40-00 1SBL357201R7000 1.42
125 105 24, 33, 48 20...60 0 0 AF75-40-00 1SBL417201R7200 (2) 1.42
72, 96, 110 48...130 0 0 AF75-40-00 1SBL417201R6900 1.42
220 100...250 0 0 AF75-40-00 1SBL417201R7000 1.42
2 N.O. + 2 N.C. main poles
70 80 24, 33, 48 20...60 0 0 AF45-22-00 1SBL337501R7200 (2) 1.42
72, 96, 110 48...130 0 0 AF45-22-00 1SBL337501R6900 1.42
220 100...250 0 0 AF45-22-00 1SBL337501R7000 1.42
125 105 24, 33, 48 20...60 0 0 AF75-22-00 1SBL417501R7200 (2) 1.42
72, 96, 110 48...130 0 0 AF75-22-00 1SBL417501R6900 1.42
220 100...250 0 0 AF75-22-00 1SBL417501R7000 1.42
(1) Other control voltages, see voltage code table.
(2) The connection polarities indicated close to the coil terminals must be respected: A1 for the positive pole and A2 for the negative pole.

35 mm x 15 EN/IEC 60715 6 0.24" 119.5 4.7" 6.5 0.26"

110 4.33" 0.16"
4
75 mm EN/IEC 60715

92 3.62" 10 0.39" 10 0.39"
AF45, AF50, AF75 1SBC100140S0201 - Rev. A 1SBC100140S0201

Main dimensions mm, inches
