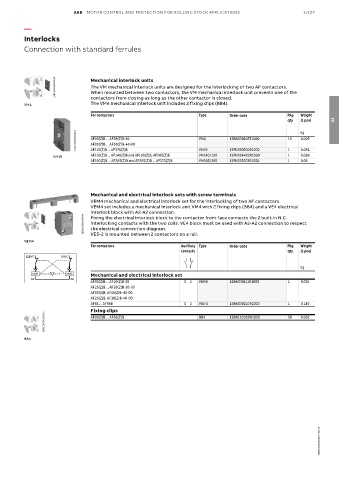

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/107

—

Interlocks
Connection with standard ferrules

1SBC100010V0014 Mechanical interlock units
The VM mechanical interlock units are designed for the interlocking of two AF contactors.
When mounted between two contactors, the VM mechanical interlock unit prevents one of the
The VM4 mechanical interlock unit includes 2 fixing clips (BB4).
VM4 contactors from closing as long as the other contactor is closed.
For contactors Type Order code Pkg Weight
qty (1 pce) 03
1SFC101035V0001 AF09(Z)B ... AF38(Z)B-30 VM4 1SBN030105T1000 10 kg
0.005
AF09(Z)B ... AF38(Z)B-40-00

1SFN034403R1000
0.088
VM140/190
AF116(Z)B ... AF146(Z)B and AF190(Z)B, AF205(Z)B
VM19 AF116(Z)B ... AF370(Z)B VM19 1SFN030300R1000 1 1 0.054
AF190(Z)B ... AF205(Z)B and AF265(Z)B ... AF370(Z)B VM205/265 1SFN035203R1000 1 0.09

Mechanical and electrical interlock sets with screw terminals
VEM4 mechanical and electrical interlock set for the interlocking of two AF contactors.
VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical
interlock block with A2-A2 connection.
1SBC100011V0014 interlocking contacts with the two coils. VE4 block must be used with A2-A2 connection to respect
Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C.
the electrical connection diagram.
VEM4 VE5-2 is mounted between 2 contactors on a rail.
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
01NC 01NC
kg
KM1 KM2 Mechanical and electrical interlock set
A2 A2
AF09(Z)B ... AF16(Z)B-30 0 2 VEM4 1SBN030111R1000 1 0.035
AF26(Z)B ... AF38(Z)B-30-00
AF09(Z)B, AF16(Z)B-40-00
AF26(Z)B, AF38(Z)B-40-00
AF45 ... AF95B 0 2 VE5-2 1SBN030210R1000 1 0.146
Fixing clips
1SBC100013V0014 AF09(Z)B ... AF38(Z)B BB4 1SBN110120W1000 50 0.002

BB4

1SBC101764S0201 - Rev. B
