3/110 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

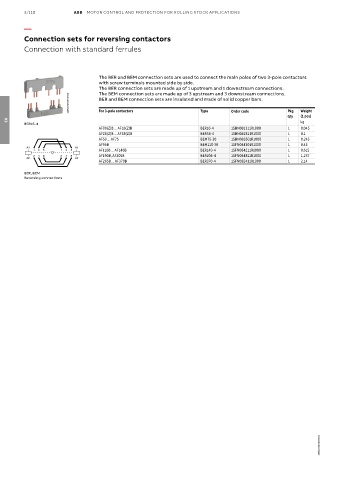

Connection sets for reversing contactors
Connection with standard ferrules

The BER and BEM connection sets are used to connect the main poles of two 3-pole contactors
with screw terminals mounted side by side.
The BER connection sets are made up of 1 upstream and 1 downstream connections.
The BEM connection sets are made up of 3 upstream and 3 downstream connections.
1SBC100016V0014 BER and BEM connection sets are insulated and made of solid copper bars.

Pkg
Type
For 3-pole contactors
Order code
(1 pce)
qty Weight
kg
BER16-4
03
AF09(Z)B ... AF16(Z)B BER16-4 1SBN081311R1000 1 0.045
AF26(Z)B ... AF38(Z)B BER38-4 1SBN082311R1000 1 0.1
AF50 ... AF75 BEM75-30 1SBN083501R1000 1 0.243
AF95B BEM110-30 1SFN084301R1000 1 0.45
A1 A1
1 3 5 1 3 5 AF116B ... AF146B BER140-4 1SFN084211R1000 1 0.615
2 4 6 2 4 6 AF190B, AF205B BER205-4 1SFN084811R1000 1 1.237
A2 A2
AF265B ... AF370B BER370-4 1SFN085411R1000 1 2.14
BER, BEM
Reversing connections

1SBC100152S0201
