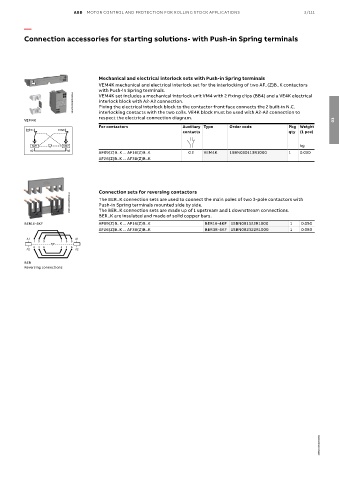

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/111

—

Connection accessories for starting solutions- with Push-in Spring terminals

Mechanical and electrical interlock sets with Push-in Spring terminals
VEM4K mechanical and electrical interlock set for the interlocking of two AF..(Z)B..K contactors
with Push-in Spring terminals.
1SBC100083V0014 interlock block with A2-A2 connection.
VEM4K set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4K electrical
Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C.
interlocking contacts with the two coils. VE4K block must be used with A2-A2 connection to
respect the electrical connection diagram.
VEM4K 03
For contactors Auxiliary Type Order code Pkg Weight
01NC 01NC
contacts qty (1 pce)

KM1 KM2 kg
A2 A2
AF09(Z)B..K ... AF16(Z)B..K 0 2 VEM4K 1SBN030113R1000 1 0.030
AF26(Z)B..K ... AF38(Z)B..K

Connection sets for reversing contactors
1SBC100128V0014 The BER..K connection sets are used to connect the main poles of two 3-pole contactors with
Push-in Spring terminals mounted side by side.
The BER..K connection sets are made up of 1 upstream and 1 downstream connections.
BER..K are insulated and made of solid copper bars.
BER16-4KF AF09(Z)B..K ... AF16(Z)B..K BER16-4KF 1SBN081322R1000 1 0.050
AF26(Z)B..K ... AF38(Z)B..K BER38-4KF 1SBN082322R1000 1 0.080
A1 A1
1 3 5 1 3 5
2 4 6 2 4 6
A2 A2
BER
Reversing connections

1SBC100622S0201
