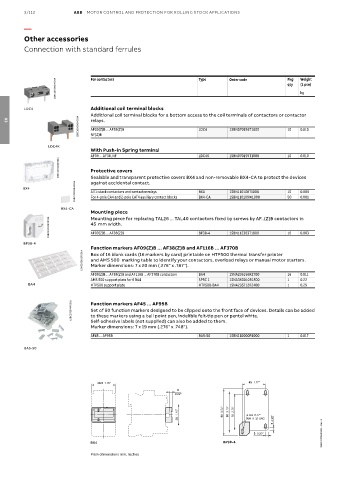

Page 164 - Contactors_Catalogue

3/112 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

Other accessories
Connection with standard ferrules

1SBC100020V0014 For contactors Type Order code Pkg Weight
(1 pce)
qty
kg

LDC4 Additional coil terminal blocks
Additional coil terminal blocks for a bottom access to the coil terminals of contactors or contactor
1SBC100090V0014 relays. LDC4 1SBN070156T1000 10 0.010
03
AF09(Z)B ... AF38(Z)B
NF(Z)B

LDC4K
With Push-in Spring terminal
AF09 ... AF38, NF LDC4K 1SBN070159T1000 10 0.010
1SBC100021V0014 Protective covers

Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices
1SBC100023V0014 All 1-stack contactors and contactor relays BX4 1SBN110108T1000 10 0.006
BX4 against accidental contact.
BX4-CA
For 4-pole CA4 and 2-pole CAT4 auxiliary contact blocks
1SBN110109W1000
50
0.001
BX4-CA
Mounting piece
Mounting piece for replacing TAL26 ... TAL40 contactors fixed by screws by AF..(Z)B contactors in
1SBC100022V0014 45 mm width. BP38-4 1SBN112303T1000 10 0.003
AF09(Z)B ... AF38(Z)B
BP38-4
Function markers AF09(Z)B ... AF38(Z)B and AF116B ... AF370B
1SNC160101F0014 Box of 16 blank cards (16 markers by card) printable on HTP500 thermal transfer printer
and AMS 500 marking table to identify your contactors, overload relays or manual motor starters.
Marker dimensions: 7 x 20 mm (.276" x .787").
AF09(Z)B ... AF38(Z)B and AF116B ... AF370B contactors BA4 1SNA235156R2700 16 0.011
AMS 500 support plate for 8 BA4 SPRC 1 1SNA360010R1500 1 0.22
BA4 HTP500 support plate HTP500-BA4 1SNA235712R2400 1 0.29

1SBC575874F0301 Function markers AF45 ... AF95B
Set of 50 function markers designed to be clipped onto the front face of devices. Details can be added
to these markers using a ball point pen, indelible felt-tip pen or pentel white.
Self-adhesive labels (not supplied) can also be added to them.
Marker dimensions: 7 x 19 mm (.276" x .748").
AF45 ... AF95B BA5-50 1SBN110000R1000 1 0.017

BA5-50

44.8 1.76" 45 1.77"
6
0.24"

28 1.10" 90 3.54" 80 3.15" 70 2.76" ø 4.2 0.17" 5 0.20"
M4 8-32 UNC

5 0.20" 1SBC101765S0201 - Rev. B
54 2.13"
BX4 BP38-4
Main dimensions mm, inches
