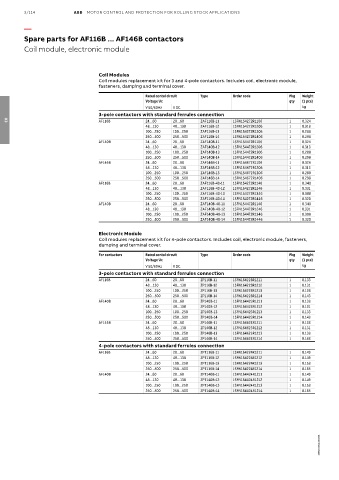

Page 166 - Contactors_Catalogue

3/114 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

Spare parts for AF116B ... AF146B contactors
Coil module, electronic module

Coil Modules
Coil modules replacement kit for 3 and 4-pole contactors. Includes coil, electronic module,
fasteners, damping and terminal cover.
Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
3-pole contactors with standard ferrules connection
AF116B 24…60 20…60 ZAF116B-11 1SFN154272R1106 1 0.324
03
48…130 48…130 ZAF116B-12 1SFN154272R1206 1 0.313
100…250 100…250 ZAF116B-13 1SFN154272R1306 1 0.288
250…500 250…500 ZAF116B-14 1SFN154272R1406 1 0.298
AF140B 24…60 20…60 ZAF140B-11 1SFN154472R1106 1 0.324
48…130 48…130 ZAF140B-12 1SFN154472R1206 1 0.313
100…250 100…250 ZAF140B-13 1SFN154472R1306 1 0.288
250…500 250…500 ZAF140B-14 1SFN154472R1406 1 0.298
AF146B 24…60 20…60 ZAF146B-11 1SFN154672R1106 1 0.324
48…130 48…130 ZAF146B-12 1SFN154672R1206 1 0.313
100…250 100…250 ZAF146B-13 1SFN154672R1306 1 0.288
250…500 250…500 ZAF146B-14 1SFN154672R1406 1 0.298
AF116B 24…60 20…60 ZAF116B-40-11 1SFN154272R1146 1 0.340
48…130 48…130 ZAF116B-40-12 1SFN154272R1246 1 0.331
100…250 100…250 ZAF116B-40-13 1SFN154272R1346 1 0.308
250…500 250…500 ZAF116B-40-14 1SFN154272R1446 1 0.320
AF140B 24…60 20…60 ZAF140B-40-11 1SFN154472R1146 1 0.340
48…130 48…130 ZAF140B-40-12 1SFN154472R1246 1 0.331
100…250 100…250 ZAF140B-40-13 1SFN154472R1346 1 0.308
250…500 250…500 ZAF140B-40-14 1SFN154472R1446 1 0.320
Electronic Module
Coil modules replacement kit for 4-pole contactors. Includes coil, electronic module, fasteners,
damping and terminal cover.
For contactors Rated contol circuit Type Order code Pkg Weight
Voltage Uc qty (1 pce)
V 50/60Hz V DC kg
3-pole contactors with standard ferrules connection
AF116B 24…60 20…60 ZP116B-11 1SFN164223R1211 1 0.133
48…130 48…130 ZP116B-12 1SFN164223R1212 1 0.131
100…250 100…250 ZP116B-13 1SFN164223R1213 1 0.133
250…500 250…500 ZP116B-14 1SFN164223R1214 1 0.143
AF140B 24…60 20…60 ZP140B-11 1SFN164423R1211 1 0.133
48…130 48…130 ZP140B-12 1SFN164423R1212 1 0.131
100…250 100…250 ZP140B-13 1SFN164423R1213 1 0.133
250…500 250…500 ZP140B-14 1SFN164423R1214 1 0.143
AF146B 24…60 20…60 ZP146B-11 1SFN164623R1211 1 0.133
48…130 48…130 ZP146B-12 1SFN164623R1212 1 0.131
100…250 100…250 ZP146B-13 1SFN164623R1213 1 0.133
250…500 250…500 ZP146B-14 1SFN164623R1214 1 0.143
4-pole contactors with standard ferrules connection
AF116B 24…60 20…60 ZPT116B-11 1SFN164224R1211 1 0.149
48…130 48…130 ZPT116B-12 1SFN164224R1212 1 0.149
100…250 100…250 ZPT116B-13 1SFN164224R1213 1 0.153
250…500 250…500 ZPT116B-14 1SFN164224R1214 1 0.165
AF140B 24…60 20…60 ZPT140B-11 1SFN164424R1211 1 0.149
48…130 48…130 ZPT140B-12 1SFN164424R1212 1 0.149
100…250 100…250 ZPT140B-13 1SFN164424R1213 1 0.153
250…500 250…500 ZPT140B-14 1SFN164424R1214 1 0.165

1SBC100544S0201
