3/144 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

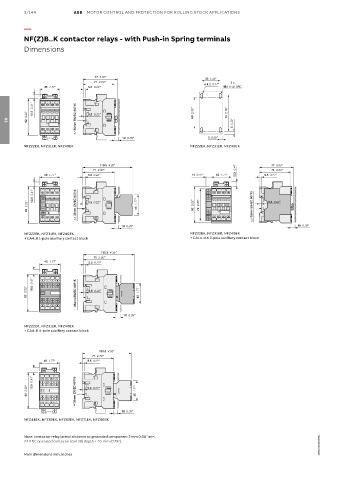

NF(Z)B..K contactor relays - with Push-in Spring terminals
Dimensions

77 3.03" 77 3.03" 35 1.38"
45 1.77" 71 2.80" 71 2.80" 2 x
45 1.77" 5.5 0.22" 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC

10.5 0.41" 80 3.15" 35mm EN/EC 60715 6 0.24" 35 mm EN/IEC 60715 5.5 0.22"
82 3.22" 5.5 0.22" 60 2.36" 70 2.76" 5 0.20"

03
10 0.39"
10 0.39" 5 0.20"
NFZ22EK, NFZ31EK, NFZ40EK NFZ22EK, NFZ31EK, NFZ40EK

110.5 4.35" 77 3.03"
71 2.80" 10.5 0.41" 71 2.80"
45 1.77" 5.5 0.22" 12 0.47" 45 1.77" 5.5 0.22"

10.5 0.41"

82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 72 2.83" 35mm EN/EC 60715 5.5 0.22"

10 0.39" 10 0.39"
NFZ22EK, NFZ31EK, NFZ40EK NFZ22EK, NFZ31EK, NFZ40EK
+ CA4..K 1-pole auxiliary contact block + CAL4-11K 2-pole auxiliary contact block

110.5 4.35"
71 2.80"
45 1.77" 5.5 0.22"

10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77"

10 0.39"
NFZ22EK, NFZ31EK, NFZ40EK
+ CA4..K 4-pole auxiliary contact block

110.5 4.35"
71 2.79"
45 1.77" 5.5 0.22"

10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77"

10 0.39"
NFZ44EK, NFZ53EK, NFZ62EK, NFZ71EK, NFZ80EK

Note: contactor relay lateral distance to grounded component 2 mm 0.08" min.
24 V DC operated contactor (coil 30) depth + 20 mm (0.79"). 1SBC100625S0201

Main dimensions mm, inches
