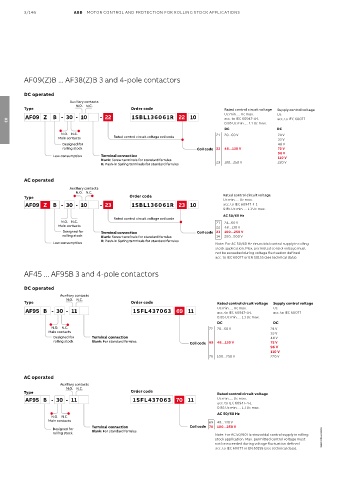

Page 198 - Contactors_Catalogue

3/146 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

AF09(Z)B ... AF38(Z)B 3 and 4-pole contactors

DC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage Supply control voltage
AF09 Z B - 30 - 10 - 22 1SBL136061R 22 10 Uc min. ... Uc max. Uc
acc. to IEC 60947-4-1
acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
03
DC DC
N.O. N.C. 21 20...60 V 24 V
Main contacts Rated control circuit voltage coil code 33 V
Designed for 48 V
rolling stock Coil code 22 48...130 V 72 V
96 V
Low consumption Terminal connection
Blank: Screw terminals for standard ferrules 110 V
K: Push-in Spring terminals for standard ferrules 23 100...250 V 220 V
AC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage
Uc min. ... Uc max.
AF09 Z B - 30 - 10 - 23 1SBL136061R 23 10 acc. to IEC 60947-4-1
0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
Rated control circuit voltage coil code
N.O. N.C. 21 24...60 V
Main contacts 22 48...130 V
Designed for Terminal connection Coil code 23 100...250 V
rolling stock Blank: Screw terminals for standard ferrules 14 250...500 V
K: Push-in Spring terminals for standard ferrules
Low consumption Note: For AC 50/60 Hz sinusoïdal control supply in rolling
stock application. Max. permitted control voltage must
not be exceeded during voltage fluctuation defined
acc. to IEC 60077 or EN 50155 (see technical data).
AF45 ... AF95B 3 and 4-pole contactors

DC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage Supply control voltage
AF95 B - 30 - 11 1SFL437063 69 11 Uc min. ... Uc max. Uc
acc. to IEC 60947-4-1
acc. to IEC 60077
0.85 Uc min. ... 1.1 Uc max.
DC DC
N.O. N.C. 72 20...60 V 24 V
Main contacts 3 3 V
Designed for Terminal connection 4 8 V
rolling stock Blank: For standard ferrules Coil code 69 48...130 V 72 V
96 V
110 V
70 100...250 V 220 V

AC operated
Auxiliary contacts
N.O. N.C.
Type Order code Rated control circuit voltage
AF95 B - 30 - 11 1SFL437063 70 11 Uc min. ... Uc max.
acc. to IEC 60947-4-1
0.85 Uc min. ... 1.1 Uc max.
AC 50/60 Hz
N.O. N.C.
Main contacts 69 48...130 V
Designed for Terminal connection Coil code 70 100...250 V
rolling stock Blank: For standard ferrules Note: For AC 50/60 Hz sinusoïdal control supply in rolling
stock application. Max. permitted control voltage must 1SBC100154S0201
not be exceeded during voltage fluctuation defined
acc. to IEC 60077 or EN 50155 (see technical data).
