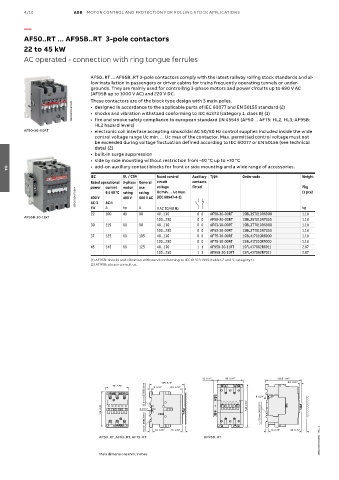

AF50..RT ... AF95B..RT 3-pole contactors
22 to 45 kW
AC operated - connection with ring tongue ferrules

AF50..RT ... AF95B..RT 3-pole contactors comply with the latest railway rolling stock standards and al-
low installation in passengers or driver cabins for trains frequently operating tunnels or under-
grounds. They are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
(AF95B up to 1000 V AC) and 220 V DC.
These contactors are of the block type design with 3 main poles.
1SBC587204F0301 • designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard (2)
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B) (1)
• fire and smoke safety compliance to european standard EN 45545 (AF50 ... AF75: HL2, HL3; AF95B:
HL2 hazard levels)
AF50-30-00RT • electronic coil interface accepting sinusoïdal AC 50/60 Hz control supplies included inside the wide
control voltage range Uc min. ... Uc max of the contactor. Max. permitted control voltage must not
be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical
data) (2)
• built-in surge suppression
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
04
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts
power current motor use voltage fitted Pkg
1SBC101510F0014 400 V θ ≤ 40 °C rating rating (IEC 60947-4-1)
(1 pce)
Uc min. … Uc max.
480 V
600 V AC
AC-3
AC-1
kW
22 A 100 hp A 80 V AC 50/60 Hz 0 0 AF50-30-00RT 1SBL357010R6900 kg
1.18
40
48...130
AF95B-30-11RT
100...250 0 0 AF50-30-00RT 1SBL357010R7000 1.18
30 115 60 90 48...130 0 0 AF63-30-00RT 1SBL377010R6900 1.18
100...250 0 0 AF63-30-00RT 1SBL377010R7000 1.18
37 125 60 105 48...130 0 0 AF75-30-00RT 1SBL417010R6900 1.18
100...250 0 0 AF75-30-00RT 1SBL417010R7000 1.18
45 145 60 125 48...130 1 1 AF95B-30-11RT 1SFL437062R6911 2.07
100...250 1 1 AF95B-30-11RT 1SFL437062R7011 2.07
(1) AF95B: shocks and vibration withstand conforming to IEC 61373:1999 (tables 2 and 3, category 1).
(2) AF95B: please consult us.

12 0.47" 90 3.54" 123.5 4.86"
108 4.25" 6.5 0.26"
35 mm x15 EN/IEC 60715 6 0.24"
70 2.76" 6 0.24" 6.5 0.26"

110 4.33" 4 0.16" 148 5.83" 75 mm EN/IEC 60715
75 mm EN/IEC 60715

1SBC100072S0201 - Rev. A
AF50..RT, AF63..RT, AF75..RT 10 0.39" 10 0.39" AF95B..RT 10 0.39" 20 0.79"

Main dimensions mm, inches
