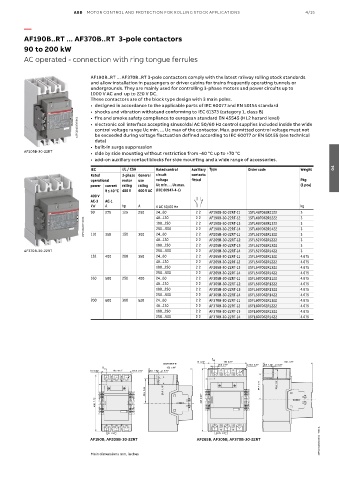

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/15

—

AF190B..RT ... AF370B..RT 3-pole contactors
90 to 200 kW
AC operated - connection with ring tongue ferrules

AF190B..RT ... AF370B..RT 3-pole contactors comply with the latest railway rolling stock standards
and allow installation in passengers or driver cabins for trains frequently operating tunnels or
undergrounds. They are mainly used for controlling 3-phase motors and power circuits up to
1000 V AC and up to 220 V DC.
These contactors are of the block type design with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level)
1SFC101205V0001 • electronic coil interface accepting sinusoidal AC 50/60 Hz control supplies included inside the wide
control voltage range Uc min. ... Uc max of the contactor. Max. permitted control voltage must not
be exceeded during voltage fluctuation defined according to IEC 60077 or EN 50155 (see technical
data)
• built-in surge suppression
AF205B-30-22RT • side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.

IEC UL / CSA Rated control Auxiliary Type Order code Weight 04
Rated 3-phase General circuit contacts
operational motor use voltage fitted Pkg
power current rating rating Uc min. … Uc max. (1 pce)
θ ≤ 40 °C 480 V 600 V AC (IEC 60947-4-1)
400 V
AC-3 AC-1
kW A hp A V AC 50/60 Hz kg
90 275 125 250 24...60 2 2 AF190B-30-22RT-11 1SFL487062R1122 3 3
48...130
2 2
AF190B-30-22RT-12
1SFL487062R1222
1SFC101207V0001 100...250 2 2 AF190B-30-22RT-13 1SFL487062R1322 3 3
2 2
AF190B-30-22RT-14
1SFL487062R1422
250…500
150
110
24...60
300
350
AF205B-30-22RT-12
48...130 2 2 AF205B-30-22RT-11 1SFL527062R1122 3 3
1SFL527062R1222
2 2
100...250 2 2 AF205B-30-22RT-13 1SFL527062R1322 3
AF370B-30-22RT 250…500 2 2 AF205B-30-22RT-14 1SFL527062R1422 3
132 400 200 350 24...60 2 2 AF265B-30-22RT-11 1SFL547062R1122 4.675
48...130 2 2 AF265B-30-22RT-12 1SFL547062R1222 4.675
100...250 2 2 AF265B-30-22RT-13 1SFL547062R1322 4.675
250…500 2 2 AF265B-30-22RT-14 1SFL547062R1422 4.675
160 500 250 400 24...60 2 2 AF305B-30-22RT-11 1SFL587062R1122 4.675
48...130 2 2 AF305B-30-22RT-12 1SFL587062R1222 4.675
100...250 2 2 AF305B-30-22RT-13 1SFL587062R1322 4.675
250…500 2 2 AF305B-30-22RT-14 1SFL587062R1422 4.675
200 600 300 520 24...60 2 2 AF370B-30-22RT-11 1SFL607062R1122 4.675
48...130 2 2 AF370B-30-22RT-12 1SFL607062R1222 4.675
100...250 2 2 AF370B-30-22RT-13 1SFL607062R1322 4.675
250…500 2 2 AF370B-30-22RT-14 1SFL607062R1422 4.675
A
10 0.39" 140 5.51" 180 7.09"
SECTION B-B
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 152 5.98"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

1SFC101256C0201 - Rev.A 1SFC101256C0201
35 1.38" 43.75 1.72"
AF190B, AF205B-30-22RT AF265B, AF305B, AF370B-30-22RT

Main dimensions mm, inches
