ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 4/11

—

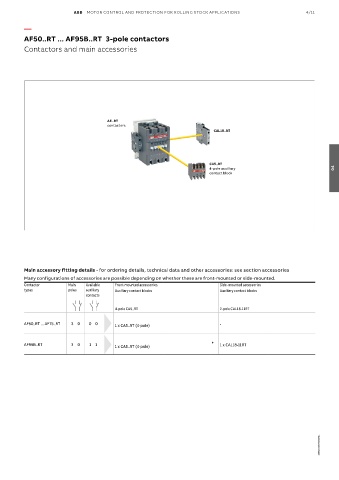

AF50..RT ... AF95B..RT 3-pole contactors
Contactors and main accessories

AF..RT
contactors
CAL18..RT

CA5..RT
4-pole auxiliary 04
contact block

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks
contacts

4-pole CA5..RT 2-pole CAL18-11RT

AF50..RT ... AF75..RT 3 0 0 0 1 x CA5..RT (4-pole) -

+
AF95B..RT 3 0 1 1 1 x CA5..RT (4-pole) 1 x CAL18-11RT

1SBC100073S0201
