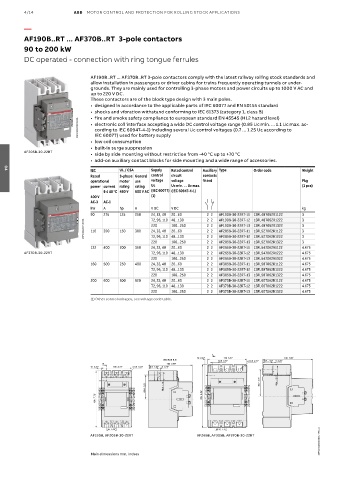

4/14 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—

AF190B..RT ... AF370B..RT 3-pole contactors
90 to 200 kW
DC operated - connection with ring tongue ferrules

AF190B..RT ... AF370B..RT 3-pole contactors comply with the latest railway rolling stock standards and
allow installation in passengers or driver cabins for trains frequently operating tunnels or under-
grounds. They are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC and
up to 220 V DC.
These contactors are of the block type design with 3 main poles.
• designed in accordance to the applicable parts of IEC 60077 and EN 50155 standard
• shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
• fire and smoke safety compliance to european standard EN 45545 (HL2 hazard level)
1SFC101205V0001 • electronic coil interface accepting a wide DC control voltage range (0.85 Uc min. ... 1.1 Uc max. ac-
cording to IEC 60947-4-1) including several Uc control voltages (0.7 ... 1.25 Uc according to
IEC 60077) used for battery supply
• low coil consumption
• built-in surge suppression
AF205B-30-22RT
• side by side mounting without restriction from -40 °C up to +70 °C
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Supply Rated control Auxiliary Type Order code Weight
04
Rated 3-phase General control circuit contacts
operational motor use voltage voltage fitted Pkg
power current rating rating Uc Uc min. … Uc max. (1 pce)
θ ≤ 40 °C 480 V 600 V AC (IEC 60077) (IEC 60947-4-1)
400 V (1)
AC-3 AC-1
kW A hp A V DC V DC kg
90 275 125 250 24, 33, 48 20...60 2 2 AF190B-30-22RT-11 1SFL487062R1122 3 3
2 2
AF190B-30-22RT-12 1SFL487062R1222
72, 96, 110 48...130
1SFC101207V0001 110 350 150 300 220 100...250 2 2 AF190B-30-22RT-13 1SFL487062R1322 3 3
24, 33, 48
20...60
AF205B-30-22RT-11 1SFL527062R1122
2 2
72, 96, 110 48...130
220 100...250 2 2 AF205B-30-22RT-12 1SFL527062R1222 3 3
AF205B-30-22RT-13 1SFL527062R1322
2 2
132 400 200 350 24, 33, 48 20...60 2 2 AF265B-30-22RT-11 1SFL547062R1122 4.675
AF370B-30-22RT 72, 96, 110 48...130 2 2 AF265B-30-22RT-12 1SFL547062R1222 4.675
220 100...250 2 2 AF265B-30-22RT-13 1SFL547062R1322 4.675
160 500 250 400 24, 33, 48 20...60 2 2 AF305B-30-22RT-11 1SFL587062R1122 4.675
72, 96, 110 48...130 2 2 AF305B-30-22RT-12 1SFL587062R1222 4.675
220 100...250 2 2 AF305B-30-22RT-13 1SFL587062R1322 4.675
200 600 300 520 24, 33, 48 20...60 2 2 AF370B-30-22RT-11 1SFL607062R1122 4.675
72, 96, 110 48...130 2 2 AF370B-30-22RT-12 1SFL607062R1222 4.675
220 100...250 2 2 AF370B-30-22RT-13 1SFL607062R1322 4.675
(1) Other control voltages, see voltage code table.

A
10 0.39" 140 5.51" 180 7.09"
SECTION B-B
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 152 5.98"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

1SFC101255C0201 - Rev.A
35 1.38" 43.75 1.72"
AF190B, AF205B-30-22RT AF265B, AF305B, AF370B-30-22RT

Main dimensions mm, inches
