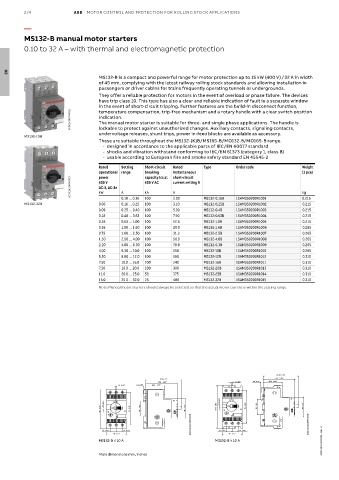

2/4 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
MS132-B manual motor starters

0.10 to 32 A – with thermal and electromagnetic protection

MS132-B is a compact and powerful range for motor protection up to 15 kW (400 V) / 32 A in width
02
of 45 mm, complying with the latest railway rolling stock standards and allowing installation in
passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They offer a reliable protection for motors in the event of overload or phase failure. The devices
have trip class 10. This type has also a clear and reliable indication of fault in a separate window
in the event of short-circuit tripping. Further features are the build-in disconnect function,
temperature compensation, trip-free mechanism and a rotary handle with a clear switch position
2CDC241007V0021 indication.
The manual motor starter is suitable for three- and single phase applications. The handle is
lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts,
undervoltage releases, shunt trips, power in-feed blocks are available as accessory.
MS132-10B
These are suitable throughout the MS132-(K)B/MS165-B/MO132-B/MO165-B range.
- designed in accordance to the applicable parts of IEC/EN 60077 standard
- shocks and vibration withstand conforming to IEC/EN 61373 (category 1, class B)
- usable according to European fire and smoke safety standard EN 45545-2
Rated Setting Short-circuit Rated Type Order code Weight
operational range breaking instantaneous (1 pce)
short-circuit
capacity Ics at
power
2CDC241008V0021 400 V A 400 V AC current setting li kg
AC-3, AC-3e
kA
kW
A
3.10
0.16 … 0.25
MS132-32B - 0.06 0.10 … 0.16 100 2.00 MS132-0.16B 1SAM350200R1001 0.215
100
0.215
1SAM350200R1002
MS132-0.25B
0.09 0.25 … 0.40 100 5.00 MS132-0.4B 1SAM350200R1003 0.215
0.18 0.40 … 0.63 100 7.90 MS132-0.63B 1SAM350200R1004 0.215
0.25 0.63 … 1.00 100 12.5 MS132-1.0B 1SAM350200R1005 0.215
0.55 1.00 … 1.60 100 20.0 MS132-1.6B 1SAM350200R1006 0.265
0.75 1.60 … 2.50 100 31.3 MS132-2.5B 1SAM350200R1007 0.265
1.50 2.50 … 4.00 100 50.0 MS132-4.0B 1SAM350200R1008 0.265
2.20 4.00 … 6.30 100 78.8 MS132-6.3B 1SAM350200R1009 0.265
4.00 6.30 … 10.0 100 150 MS132-10B 1SAM350200R1010 0.265
5.50 8.00 … 12.0 100 180 MS132-12B 1SAM350200R1012 0.310
7.50 10.0 … 16.0 100 240 MS132-16B 1SAM350200R1011 0.310
7.50 16.0 … 20.0 100 300 MS132-20B 1SAM350200R1013 0.310
11.0 20.0 … 25.0 50 375 MS132-25B 1SAM350200R1014 0.310
15.0 25.0 … 32.0 25 480 MS132-32B 1SAM350200R1015 0.310
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.

81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"
0.1"
0.1" 3.85" 1.7 2.95" 1.77"
3.54" 1.7 2.95" 1.38" 1.77" 97.8 75 1.38" 35 45
90 75 35 45"
2CDC242015F0009 2CDC242016F0009

14 0.55" 14 0.55" 14 0.55" 14 0.55"
45 1.77" 45 1.77"
MS132-B ≤ 10 A MS132-B ≥ 10 A 2CDC131100C0201 - Rev. A

Main dimensions mm, inches
