ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/9

—

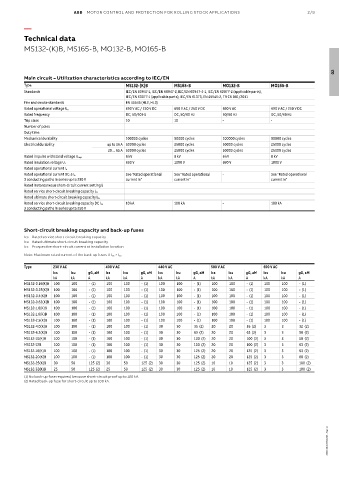

Technical data

MS132-(K)B, MS165-B, MO132-B, MO165-B

02
Main circuit – Utilization characteristics according to IEC/EN
Type MS132-(K)B MS165-B MO132-B MO165-B
Standards IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, IEC/EN 60077-2 (applicable parts),
IEC/EN 60077-1 (applicable parts), IEC/EN 61373, EN 45545-2, TR CU 001/2011
Fire and smoke standards EN 45545 (HL2, HL3)
Rated operational voltage U e 690 V AC / 250 V DC 690 V AC / 250 V DC 690 V AC 690 V AC / 250 V DC
Rated frequency DC, 50/60 Hz DC, 50/60 Hz 50/60 Hz DC, 50/60 Hz
Trip class 10 10 - -
Number of poles
Duty time
Mechanical durability 100000 cycles 50000 cycles 100000 cycles 50000 cycles
Electrical durability up to 16 A 50000 cycles 25000 cycles 50000 cycles 25000 cycles
20 ... 65 A 50000 cycles 25000 cycles 50000 cycles 25000 cycles
Rated impulse withstand voltage U imp 6 kV 8 kV 6 kV 8 kV
690 V 1000 V 690 V 1000 V
Rated insulation voltage U i
Rated operational current I e
See "Rated operational See "Rated operational - See "Rated operational
Rated operational current DC-5 I e
3 conducting paths in series up to 250 V current Ie" current Ie" current Ie"
Rated instantaneous short-circuit current setting I i
Rated service short-circuit breaking capacity I cs
Rated ultimate short-circuit breaking capacity I cu
Rated service short-circuit breaking capacity DC I cs 10 kA 100 kA - 100 kA
3 conducting paths in series up to 250 V

Short-circuit breaking capacity and back-up fuses
lcs Rated service short-circuit breaking capacity
lcu Rated ultimate short-circuit breaking capacity
Icc Prospective short-circuit current at installation location
Note: Maximum rated current of the back-up fuses if I CC > I CS
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MS132-0.16(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.25(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.4(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-0.63(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-1.0(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-1.6(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-2.5(K)B 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1) 100 100 - (1)
MS132-4.0(K)B 100 100 - (1) 100 100 - (1) 30 30 35 (2) 20 20 35 (2) 3 3 32 (2)
MS132-6.3(K)B 100 100 - (1) 100 100 - (1) 30 30 63 (2) 20 20 63 (2) 3 3 50 (2)
MS132-10(K)B 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 50 (2)
MS132-12B 100 100 - (1) 100 100 - (1) 30 30 100 (2) 20 20 100 (2) 3 3 63 (2)
MS132-16(K)B 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 63 (2)
MS132-20(K)B 100 100 - (1) 100 100 - (1) 30 30 125 (2) 20 20 125 (2) 3 3 80 (2)
MS132-25(K)B 30 50 125 (2) 30 50 125 (2) 30 30 125 (2) 10 10 125 (2) 3 3 100 (2)
MS132-32(K)B 25 50 125 (2) 25 50 125 (2) 30 30 125 (2) 10 10 125 (2) 3 3 100 (2)
(1) No back-up fuse required, because short-circuit proof up to 100 kA.
(2) Rated back-up fuse for short-circuit up to 100 kA.

2CDC131100C0201 - Rev. A
