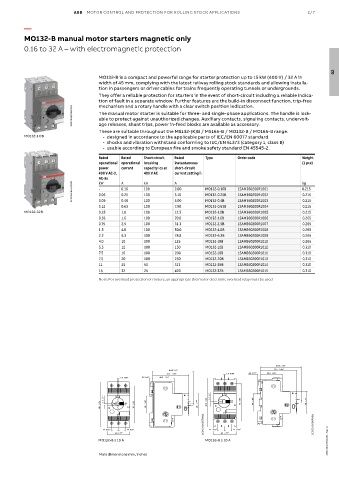

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 2/7

—
MO132-B manual motor starters magnetic only

0.16 to 32 A – with electromagnetic protection

02
MO132-B is a compact and powerful range for starter protection up to 15 kW (400 V) / 32 A in
width of 45 mm, complying with the latest railway rolling stock standards and allowing installa-
tion in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They offer a reliable protection for starters in the event of short-circuit including a reliable indica-
tion of fault in a separate window. Further features are the build-in disconnect function, trip-free
mechanism and a rotary handle with a clear switch position indication.
2CDC241003V0021 The manual motor starter is suitable for three- and single-phase applications. The handle is lock-
able to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervolt-
age releases, shunt trips, power in-feed blocks are available as accessory.
MO132-1.0B These are suitable throughout the MS132-(K)B / MS165-B / MO132-B / MO165-B range.
- designed in accordance to the applicable parts of IEC/EN 60077 standard
- shocks and vibration withstand conforming to IEC/EN 61373 (category 1, class B)
- usable according to European fire and smoke safety standard EN 45545-2.
Rated Rated Short-circuit Rated Type Order code Weight
operational operational breaking instantaneous (1 pce)
power current capacity Ics at short-circuit
400 V AC-3, 400 V AC current setting li
AC-3e A kA A kg
2CDC241004V0021 - 0.06 0.16 100 2.00 MO132-0.16B 1SAM360200R1001 0.215
kW
1SAM360200R1002
0.215
100
0.25
MO132-0.25B
3.10
0.215
0.40
MO132-0.4B
1SAM360200R1003
5.00
100
0.09
12.5
MO132-32B 0.12 0.63 100 7.90 MO132-0.63B 1SAM360200R1004 0.215
0.25
1.0
1SAM360200R1005
0.215
MO132-1.0B
100
0.55 1.6 100 20.0 MO132-1.6B 1SAM360200R1006 0.265
0.75 2.5 100 31.3 MO132-2.5B 1SAM360200R1007 0.265
1.5 4.0 100 50.0 MO132-4.0B 1SAM360200R1008 0.265
2.2 6.3 100 78.8 MO132-6.3B 1SAM360200R1009 0.265
4.0 10 100 125 MO132-10B 1SAM360200R1010 0.265
5.5 12 100 150 MO132-12B 1SAM360200R1012 0.310
7.5 16 100 200 MO132-16B 1SAM360200R1011 0.310
7.5 20 100 250 MO132-20B 1SAM360200R1013 0.310
11 25 50 313 MO132-25B 1SAM360200R1014 0.310
15 32 25 400 MO132-32B 1SAM360200R1015 0.310
Note: For overload protection of motors, an appropriate thermal or electronic overload relay must be used

81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"

0.1"
0.1" 1.7 1.77"
3.54" 1.7 2.95" 1.38" 1.77" 3.85" 2.95" 75 1.38" 35 45
90 75 35 45" 97.8
2CDC242005F0011 2CDC242006F0011

14 0.55" 14 0.55" 14 0.55" 14 0.55"
45 1.77" 45 1.77"
MO132-B ≤ 10 A MO132-B ≥ 10 A 2CDC131100C0201 - Rev. A

Main dimensions mm, inches
