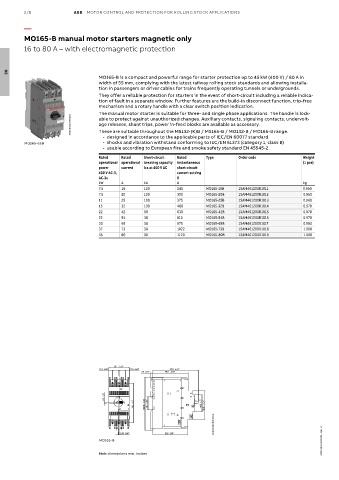

Page 32 - Contactors_Catalogue

2/8 ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS

—
MO165-B manual motor starters magnetic only

16 to 80 A – with electromagnetic protection

MO165-B is a compact and powerful range for starter protection up to 45 kW (400 V) / 80 A in
02
width of 55 mm, complying with the latest railway rolling stock standards and allowing installa-
tion in passengers or driver cabins for trains frequently operating tunnels or undergrounds.
They offer a reliable protection for starters in the event of short-circuit including a reliable indica-
tion of fault in a separate window. Further features are the build-in disconnect function, trip-free
mechanism and a rotary handle with a clear switch position indication.
The manual motor starter is suitable for three- and single phase applications. The handle is lock-
2CDC241015V0016 age releases, shunt trips, power in-feed blocks are available as accessory.
able to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervolt-
These are suitable throughout the MS132-(K)B / MS165-B / MO132-B / MO165-B range.
- designed in accordance to the applicable parts of IEC/EN 60077 standard
MO165-65B - shocks and vibration withstand conforming to IEC/EN 61373 (category 1, class B)
- usable according to European fire and smoke safety standard EN 45545-2.
Rated Rated Short-circuit Rated Type Order code Weight
operational operational breaking capacity instantaneous (1 pce)
power current Ics at 400 V AC short-circuit
400 V AC-3, current setting
AC-3e li
kW A kA A kg
7.5 16 100 240 MO165-16B 1SAM461200R1011 0.950
7.5 20 100 300 MO165-20B 1SAM461200R1012 0.950
11 25 100 375 MO165-25B 1SAM461200R1013 0.960
15 32 100 480 MO165-32B 1SAM461200R1014 0.970
22 42 50 630 MO165-42B 1SAM461200R1015 0.970
22 54 30 810 MO165-54B 1SAM461200R1016 0.970
30 65 30 975 MO165-65B 1SAM461200R1017 0.980
37 73 30 1022 MO165-73B 1SAM461200R1018 1.000
45 80 30 1120 MO165-80B 1SAM461200R1019 1.000

55 2.17"
17.5 0.69" 17.5 0.69" 122.1 4.81"
5.5 0.22" 95.5 3.76"

0.07"
1.75 4.17" 5.62" 1.38" 44.9 1.77" 3.01"
106 142.65 35 76.35
2CDC242002F0014

2.05 0.08" 93.5 3.68"
MO165-B 2CDC131100C0201 - Rev. A

Main dimensions mm, inches
