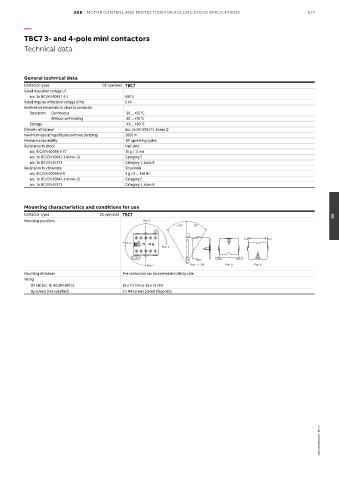

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 5/7

—
TBC7 3- and 4-pole mini contactors

Technical data

General technical data
Contactor types DC operated TBC7
Rated insulation voltage Ui
acc. to IEC/EN 60947-4-1 690 V
Rated impulse withstand voltage Uimp 6 kV
Ambient air temperature, close to contactor
Operation Continuous -30 ... +55 °C
Without self-heating -30 ... +70 °C
Storage -40 ... +80 °C
Climatic withstand Acc. to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 2000 m
Mechanical durability 107 operating cycles
Resistance to shock Half-sine
acc. IEC/EN 60068-2-27 15 g / 11 ms
acc. to IEC/EN 60947-1 Annex. Q Category E
acc. to IEC/EN 61373 Category 1, class B
Resistance to vibrations Sinusoidal
acc. IEC/EN 60068-2-6 5 g / 3 ... 150 Hz
acc. to IEC/EN 60947-1 Annex. Q Category E
acc. to IEC/EN 61373 Category 1, class B

Mounting characteristics and conditions for use
Contactor types DC operated TBC7 05
Mounting positions Pos. 2
+ 30° - 30°

Pos. 4
Pos. 3

Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Mounting distances The contactors can be assembled side by side
Fixing
On rail acc. to IEC/EN 60715 35 x 7.5 mm or 35 x 15 mm
By screws (not supplied) 2 x M4 screws placed diagonally
