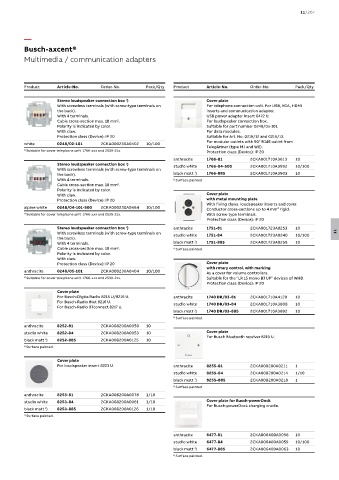

Page 1313 - Din prodcuts 2020

11/207

—
Busch-axcent®
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Stereo loudspeaker connection box ) Cover plate
With screwless terminals (with screw-type terminals on For telephone connection unit. For USB, VGA, HDMI
the back). inserts and communication adapter.
With 4 terminals. USB power adapter insert 6472 U.
Cable cross-section max. 10 mm . 2 For loudspeaker connection box.
Polarity is indicated by color. Suitable for part number 0248/0x-101.
With claw. For data modules.
Protection class (Device): IP 20 Suitable for Art. No. 0219/12 and 0219/13.
For modular outlets with 90° RJ45 outlet from
white 0248/02-101 2CKA000230A0402 10/100
Telegärtner (type MJ and WE).
1) Suitable for cover telephone unit 1766-xxx and 2539-21x.
Protection class (Device): IP 20
anthracite 1766-81 2CKA001710A3613 10
Stereo loudspeaker connection box ) studio white 1766-84-500 2CKA001710A3992 10/100
1
With screwless terminals (with screw-type terminals on
the back). black matt ) 1 1766-885 2CKA001710A3903 10
With 4 terminals. 1) Surface painted.
Cable cross-section max. 10 mm . 2
Polarity is indicated by color.
With claw. Cover plate
Protection class (Device): IP 20 with metal mounting plate
With fixing claws. loudspeaker inserts and cover.
alpine white 0248/04-101-500 2CKA000230A0464 10/100 Conductor cross-sections up to 4 mm² rigid.
1) Suitable for cover telephone unit 1766-xxx and 2539-21x. With screw-type terminals.
Protection class (Device): IP 20
Stereo loudspeaker connection box ) anthracite 1751-81 2CKA001723A0253 10
1
With screwless terminals (with screw-type terminals on studio white 1751-84 2CKA001723A0240 10/100 11
the back).
With 4 terminals. black matt ) 1 1751-885 2CKA001723A0259 10
Cable cross-section max. 10 mm . 2 1) Surface painted.
Polarity is indicated by color.
With claw.
Protection class (Device): IP 20 Cover plate
with rotary control, with marking
anthracite 0248/05-101 2CKA000230A0404 10/100 As a cover for volume controllers.
Suitable for the "LR 15 mono BJ UP" devices of WHD.
1) Suitable for cover telephone unit 1766-xxx and 2539-21x.
Protection class (Device): IP 20
Cover plate
For Busch-DigitalRadio 8215 U/8216 U. anthracite 1740 DR/03-81 2CKA001710A4120 10
For Busch-Radio iNet 8216 U. studio white 1740 DR/03-84 2CKA001710A3808 10
For Busch-Radio BTconnect 8217 U.
black matt ) 1 1740 DR/03-885 2CKA001710A3892 10
1) Surface painted.
anthracite 8252-81 2CKA008200A0050 10
studio white 8252-84 2CKA008200A0053 10 Cover plate
For Busch Bluetooth receiver 8219 U.
black matt ) 8252-885 2CKA008200A0125 10
1
1) Surface painted.
Cover plate
For loudspeaker insert 8223 U. anthracite 8255-81 2CKA008200A0211 1
studio white 8255-84 2CKA008200A0214 1/10
black matt ) 1 8255-885 2CKA008200A0218 1
1) Surface painted.
anthracite 8253-81 2CKA008200A0078 1/10
studio white 8253-84 2CKA008200A0081 1/10 Cover plate for Busch-powerDock
For Busch-powerDock charging cradle.
black matt ) 8253-885 2CKA008200A0126 1/10
1
1) Surface painted.

anthracite 6477-81 2CKA006400A0056 10
studio white 6477-84 2CKA006400A0059 10/100
black matt ) 1 6477-885 2CKA006400A0063 10
1) Surface painted.
