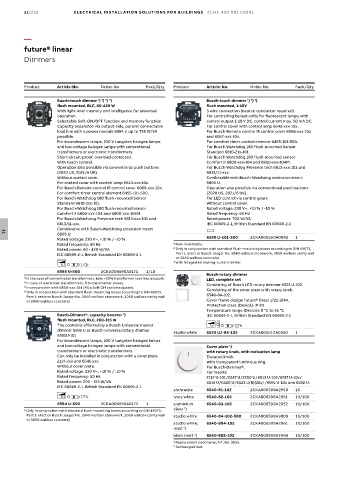

future® linear
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
3
Busch-touch dimmer ) ) ) ) Busch-touch dimmer ) ) )
1
4
3
2
1
flush mounted, RLC, 60-420 W flush mounted, 1-10V
With light-level memory and intelligence for universal 3 wire connection (neutral conductor required).
operation. For controlling ballast units for fluorescent lamps with
Selectable Soft-ON/OFF function and memory function. control output 1-10 V DC, control current max. 50 mA DC.
Capacity expansion via output-side, parallel connectable For control cover with control lamp 6543-xxx-10x.
load line with a power module 6594 U up to 735 W/VA For Busch-Remote control IR control cover 6066-xxx-10x
possible. and 6067-xxx-10x.
For incandescent lamps, 230 V tungsten halogen lamps For comfort timer control element 6455-101-500.
and low-voltage halogen lamps with conventional For Busch-Watchdog 180 flush-mounted Sensor
transformers or electronic transformers. Standard 6810-21x-101.
Short-circuit-proof, overload-protected. For Busch-Watchdog 180 flush-mounted sensor
With touch control. Comfort II 6800-xxx-104 and 6800-xxx-104M.
Operation also possible via conventional push buttons For Busch-Watchdog Presence tech 6813-xxx-101 und
(2020 US, 2021/6 UK). 6813/11-xxx.
Without control cover. Combinable with Busch-Watchdog extension insert
For control cover with control lamp 6543-xxx-10x. 6805 U.
For Busch-Remote control IR control cover 6066-xxx-10x. Operation also possible via conventional push buttons
For comfort timer control element 6455-101-500. (2020 US, 2021/6 UK).
For Busch-Watchdog 180 flush-mounted Sensor For LED control via control gears
Standard 6810-21x-101. Without control cover.
For Busch-Watchdog 180 flush-mounted sensor Rated voltage: 230 V~, +10 % / -10 %
Comfort II 6800-xxx-104 and 6800-xxx-104M. Rated frequency: 50 Hz
For Busch-Watchdog Presence tech 6813-xxx-101 und Rated power: 700 W/VA
6813/11-xxx. IEC 60669-2-1, British Standard EN 60669-2-1
Combinable with Busch-Watchdog extension insert
6805 U.
11
Rated voltage: 230 V~, +10 % / -10 % 6550 U-101-500 2CKA006550A0042 1
Rated frequency: 50 Hz 1) Non-illuminable.
Rated power: 60 - 420 W/VA 2) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
IEC 60669-2-1, British Standard EN 60669-2-1 Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
3) with integrated making-current limiter

6593 U-500 2CKA006590A0171 1/10
Busch-rotary dimmer
1) In the case of conventional transformers, take ~20% transformer loss into account.
LED, complete set
2) In case of electronic transformers, 5 % transformer losses.
Consisting of Busch LED rotary dimmer 6523 U-102.
3) In conjunction with 6800-xxx-104 (M) a Soft Off can be adjusted.
Consisting of the cover plate with rotary knob
4) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
6540-84-102.
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete) Cover frame design future® linear 1721-184K.
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
1
Busch-Dimmer®, capacity booster ) IEC 60669-2-1, British Standard EN 60669-2-1
flush mounted, RLC, 200-315 W
The control is effected by a Busch-Universal master
dimmer 6593 U or Busch-Universal rotary dimmer studio white 6523 UJ-84-102 2CKA006512A0350 1
6591U-101
For incandescent lamps, 230 V tungsten halogen lamps
and low-voltage halogen lamps with conventional Cover plate )
1
transformers or electronic transformers. with rotary knob, with indication lamp
Can only be installed in conjunction with a cover plate Elevated knob.
2114-xxx and 6541-xxx. With transparent luminous ring.
Without cover plate. For Busch-Dimmer®.
Rated voltage: 230 V~, +10 % / -10 % For inserts
Rated frequency: 50 Hz 2112 U-101/2247 U/2250 U/6513 U-102/6517 U-10x/
Rated power: 200 - 315 W/VA 6519 U/6520 U/6523 U(R)(10x) /6591 U-10x and 6592 U.
IEC 60669-2-1, British Standard EN 60669-2-1
anthracite 6540-81-102 2CKA006599A2950 10
ivory white 6540-82-102 2CKA006599A2951 10/100
6594 U-500 2CKA006590A0172 1 aluminium 6540-83-102 2CKA006599A2952 10/100
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073, silver ) 2
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall studio white 6540-84-102-500 2CKA006599A3009 10/100
or 3060 wallbox concrete)
studio white, 6540-884-102 2CKA006599A2961 10/100
matt ) 2
black matt ) 2 6540-885-102 2CKA006599A2966 10/100
1) Replacement neon lamp, Art. No. 3855.
2) Surface painted.
