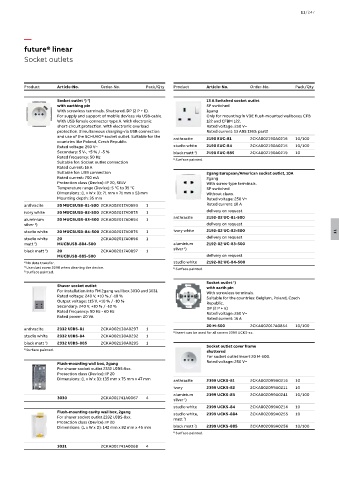

Page 1353 - Din prodcuts 2020

11/247

—
future® linear
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Socket outlet ) ) 13 A Switched socket outlet
1
2
with earthing pin SP switched
With screwless terminals. Shuttered. DP (2 P + E). 1gang
For supply and support of mobile devices via USB-cable. Only for mounting in VDE flush-mounted wallboxes CFB
With USB female connector type A. With electronic 122 and CFBM 122.
short-circuit protection. With electronic overload Rated voltage: 250 V~
protection. Simultaneous charging via USB connection Rated current: 13 ABS 1363: part2
and use of the SCHUKO® socket outlet. Suitable for the anthracite 2190 EUC-81 2CKA002190A0216 10/100
countries like Poland, Czech Republic.
Rated voltage: 250 V~ studio white 2190 EUC-84 2CKA002190A0215 10/100
Secondary: 5 V-, +5 % / -5 % black matt ) 1 2190 EUC-885 2CKA002190A0219 10
Rated frequency: 50 Hz 1) Surface painted.
Suitable for: Socket outlet connection
Rated current: 16 A
Suitable for: USB connection 2gang European/American socket outlet, 10A
Rated current: 700 mA 2gang
Protection class (Device): IP 20, SELV With screw-type terminals.
Temperature range (Device): 5 °C to 35 °C SP switched
Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm Without claws.
Mounting depth: 35 mm Rated voltage: 250 V~
anthracite 20 MUCBUSB-81-500 2CKA002017A0893 1 Rated current: 10 A
ivory white 20 MUCBUSB-82-500 2CKA002017A0875 1 delivery on request
anthracite 2192-02 UC-81-500
aluminium 20 MUCBUSB-83-500 2CKA002017A0894 1
silver ) delivery on request
3
studio white 20 MUCBUSB-84-500 2CKA002017A0876 1 ivory white 2192-02 UC-82-500 11
studio white 20 2CKA002017A0896 1 delivery on request
matt ) MUCBUSB-884-500 aluminium 2192-02 UC-83-500
3
silver ) 1
3
black matt ) 20 2CKA002017A0897 1
MUCBUSB-885-500 delivery on request
1) No data transfer. studio white 2192-02 UC-84-500
2) Use dust cover 2098 when cleaning the device.
1) Surface painted.
3) Surface painted.
Socket outlet )
1
Shaver socket outlet with earth pin
For installation into FM 2gang wall box 3030 and 3031. With screwless terminals.
Rated voltage: 240 V, +10 % / -10 % Suitable for the countries: Belgium, Poland, Czech
Output voltage: 115 V, +10 % / -10 % Republic.
Secondary: 240 V, +10 % / -10 % DP (2 P + E)
Rated frequency: 50 Hz - 60 Hz Rated voltage: 250 V~
Rated power: 20 VA
Rated current: 16 A
20 M-500 2CKA002017A0854 10/100
anthracite 2332 UJBS-81 2CKA002130A0297 1
1) Insert can be used for all covers 2399 UCKS-xx.
studio white 2332 UJBS-84 2CKA002130A0292 1
black matt ) 2332 UJBS-885 2CKA002130A0295 1
1
Socket outlet cover frame
1) Surface painted.
shuttered
For socket outlet insert 20 M-500.
Flush-mounting wall box, 2gang Rated voltage: 250 V~
For shaver socket outlet 2332 UJBS-8xx.
Protection class (Device): IP 20
Dimensions: (L x W x D): 135 mm x 75 mm x 47 mm anthracite 2399 UCKS-81 2CKA002099A0216 10
ivory 2399 UCKS-82 2CKA002099A0211 10
aluminium 2399 UCKS-83 2CKA002099A0241 10/100
3030 2CKA001741A0067 4 silver ) 1
studio white 2399 UCKS-84 2CKA002099A0214 10
Flush-mounting cavity wall box, 2gang studio white, 2399 UCKS-884 2CKA002099A0255 10
For shaver socket outlet 2332 UJBS-8xx. matt ) 1
Protection class (Device): IP 20
Dimensions: (L x W x D): 142 mm x 82 mm x 45 mm black matt ) 1 2399 UCKS-885 2CKA002099A0256 10/100
1) Surface painted.
3031 2CKA001741A0068 4
