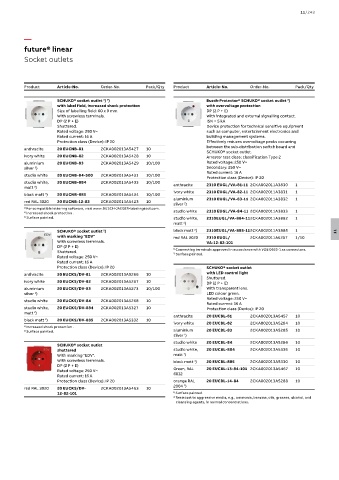

Page 1349 - Din prodcuts 2020

11/243

—
future® linear
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
SCHUKO® socket outlet ) ) Busch-Protector® SCHUKO® socket outlet )
1
2
with label field, increased shock protection with overvoltage protection
Size of labelling field: 60 x 9 mm. DP (2 P + E)
With screwless terminals. With integrated and external signalling contact.
DP (2 P + E) ISN = 5 kA
Shuttered. Device protection for technical sensitive equipment
Rated voltage: 250 V~ such as computer, entertainment electronics and
Rated current: 16 A building management systems.
Protection class (Device): IP 20 Effectively reduces overvoltage peaks occurring
between the sub-distribution switch board and
anthracite 20 EUCNB-81 2CKA002013A5427 10
SCHUKO® socket outlet.
ivory white 20 EUCNB-82 2CKA002013A5428 10 Arrestor test class: classification Type 2
aluminium 20 EUCNB-83 2CKA002013A5429 10/100 Rated voltage: 250 V~
3
silver ) Secondary: 250 V~
Rated current: 16 A
studio white 20 EUCNB-84-500 2CKA002013A5431 10/100
Protection class (Device): IP 20
studio white, 20 EUCNB-884 2CKA002013A5433 10/100 anthracite 2310 EUGL/VA-81-11 2CKA002011A3830 1
matt )
3
ivory white 2310 EUGL/VA-82-11 2CKA002011A3831 1
black matt ) 20 EUCNB-885 2CKA002013A5434 10/100
3
aluminium 2310 EUGL/VA-83-11 2CKA002011A3832 1
red RAL 3020 20 EUCNB-12-82 2CKA002013A5423 10
silver ) 2
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
2) Increased shock protection . studio white 2310 EUGL/VA-84-11 2CKA002011A3833 1
3) Surface painted. studio white, 2310EUGL/VA-884-112CKA002011A3882 1
matt ) 2
SCHUKO® socket outlet ) black matt ) 2 2310EUGL/VA-885-112CKA002011A3885 1 11
1
with marking "EDV" red RAL 3020 2310 EUGL/ 2CKA002011A6257 1/10
With screwless terminals. VA-12-82-101
DP (2 P + E) 1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
Shuttered. 2) Surface painted.
Rated voltage: 250 V~
Rated current: 16 A
Protection class (Device): IP 20 SCHUKO® socket outlet
anthracite 20 EUCKS/DV-81 2CKA002013A5266 10 with LED control light
Shuttered.
ivory white 20 EUCKS/DV-82 2CKA002013A5267 10 DP (2 P + E)
aluminium 20 EUCKS/DV-83 2CKA002013A5273 10/100 With transparent lens.
2
silver ) LED colour green.
Rated voltage: 250 V~
studio white 20 EUCKS/DV-84 2CKA002013A5268 10
Rated current: 16 A
studio white, 20 EUCKS/DV-884 2CKA002013A5327 10 Protection class (Device): IP 20
2
matt )
anthracite 20 EUCBL-81 2CKA002013A5457 10
black matt ) 20 EUCKS/DV-885 2CKA002013A5332 10
2
ivory white 20 EUCBL-82 2CKA002013A5284 10
1) Increased shock protection .
2) Surface painted. aluminium 20 EUCBL-83 2CKA002013A5285 10
silver ) 1
studio white 20 EUCBL-84 2CKA002013A5286 10
SCHUKO® socket outlet
shuttered studio white, 20 EUCBL-884 2CKA002013A5336 10
With marking "EDV". matt ) 1
With screwless terminals. black matt ) 1 20 EUCBL-885 2CKA002013A5330 10
DP (2 P + E)
Rated voltage: 250 V~ Green, RAL 20 EUCBL-13-84-101 2CKA002013A5467 10
Rated current: 16 A 6032
Protection class (Device): IP 20 orange RAL 20 EUCBL-14-84 2CKA002013A5288 10
2
red RAL 3020 20 EUCKS/DV- 2CKA002013A5463 10 2004 )
12-82-101 1) Surface painted.
2) Resistant to aggressive media, e.g., ammonia, benzine, oils, greases, alcohol, and
cleansing agents, in normal concentrations.
