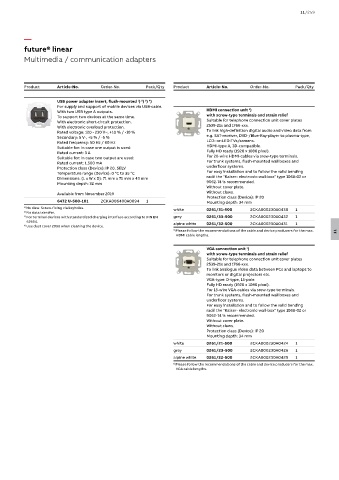

Page 1365 - Din prodcuts 2020

11/259

—
future® linear
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

USB power adapter insert, flush-mounted ) ) ) )
1
2
4
3
For supply and support of mobile devices via USB-cable.
1
With two USB type A outputs. HDMI connection unit )
To support two devices at the same time. with screw-type terminals and strain relief
With electronic short-circuit protection. Suitable for telephone connection unit cover plates
With electronic overload protection. 2539-21x and 1766-xxx.
Rated voltage: 120 - 230 V~, +10 % / -10 % To link high-definition digital audio and video data from
Secondary: 5 V-, +5 % / -5 % e.g. SAT-receiver, DVD-/Blue-Ray-player to plasma-type,
Rated frequency: 50 Hz / 60 Hz LCD- or-LED-TVs/screens.
Suitable for: In case one output is used: HDMI-type A, 3D-compatible.
Rated current: 3 A Fully HD ready (1920 x 1080 pixel).
Suitable for: In case two output are used: For 20-wire HDMI-cables via srew-type terminals.
Rated current: 1.500 mA For trunk systems, flush-mounted wall boxes and
Protection class (Device): IP 20, SELV underfloor systems.
Temperature range (Device): 0 °C to 35 °C For easy installation and to follow the valid bending
Dimensions: (L x W x D): 71 mm x 71 mm x 43 mm radii the "Kaiser- electronic-wall-box" type 1068-02 or
Mounting depth: 32 mm 9062-74 is recommended.
Without cover plate.
Available from November 2019 Without claws.
Protection class (Device): IP 20
6472 U-500-101 2CKA006400A0094 1 Mounting depth: 34 mm
1) No claw. Screw-fixing via keyholes. white 0261/31-500 2CKA000230A0430 1
2) No data transfer.
3) For terminal devices with standardized charging interface according to DIN EN grey 0261/33-500 2CKA000230A0432 1
62684.
4) Use dust cover 2098 when cleaning the device. alpine white 0261/32-500 2CKA000230A0431 1
1) Please follow the recommendations of the cable and device producers for the max. 11
HDMI cable lengths.
VGA connection unit )
1
with screw-type terminals and strain relief
Suitable for telephone connection unit cover plates
2539-21x and 1766-xxx.
To link analogue video data between PCs and laptops to
monitors or digital projectors etc.
VGA-type: D-type, 15-pole.
Fully HD ready (1920 x 1080 pixel).
For 15-wire VGA-cables via srew-type terminals.
For trunk systems, flush-mounted wall boxes and
underfloor systems.
For easy installation and to follow the valid bending
radii the "Kaiser- electronic-wall-box" type 1068-02 or
9062-74 is recommended.
Without cover plate.
Without claws.
Protection class (Device): IP 20
Mounting depth: 34 mm
white 0261/21-500 2CKA000230A0424 1
grey 0261/23-500 2CKA000230A0426 1
alpine white 0261/22-500 2CKA000230A0425 1
1) Please follow the recommendations of the cable and device producers for the max.
VGA cable lengths.
