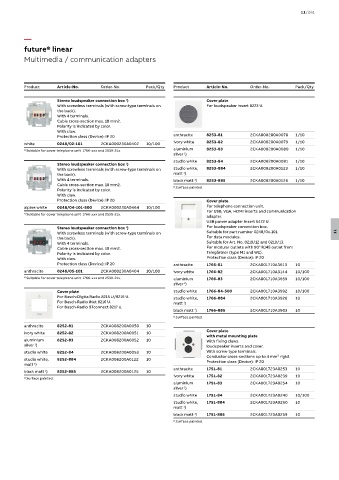

Page 1367 - Din prodcuts 2020

11/261

—
future® linear
Multimedia / communication adapters

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Stereo loudspeaker connection box ) Cover plate
1
With screwless terminals (with screw-type terminals on For loudspeaker insert 8223 U.
the back).
With 4 terminals.
Cable cross-section max. 10 mm2.
Polarity is indicated by color.
With claw.
Protection class (Device): IP 20 anthracite 8253-81 2CKA008200A0078 1/10
white 0248/02-101 2CKA000230A0402 10/100 ivory white 8253-82 2CKA008200A0079 1/10
1) Suitable for cover telephone unit 1766-xxx and 2539-21x. aluminium 8253-83 2CKA008200A0080 1/10
silver ) 1
studio white 8253-84 2CKA008200A0081 1/10
1
Stereo loudspeaker connection box )
With screwless terminals (with screw-type terminals on studio white, 8253-884 2CKA008200A0123 1/10
the back). matt ) 1
With 4 terminals. black matt ) 1 8253-885 2CKA008200A0126 1/10
Cable cross-section max. 10 mm2. 1) Surface painted.
Polarity is indicated by color.
With claw.
Protection class (Device): IP 20 Cover plate
alpine white 0248/04-101-500 2CKA000230A0464 10/100 For telephone connection unit.
For USB, VGA, HDMI inserts and communication
1) Suitable for cover telephone unit 1766-xxx and 2539-21x.
adapter.
USB power adapter insert 6472 U.
Stereo loudspeaker connection box ) For loudspeaker connection box.
1
With screwless terminals (with screw-type terminals on Suitable for part number 0248/0x-101. 11
the back). For data modules.
With 4 terminals. Suitable for Art. No. 0219/12 and 0219/13.
Cable cross-section max. 10 mm2. For modular outlets with 90° RJ45 outlet from
Polarity is indicated by color. Telegärtner (type MJ and WE).
With claw. Protection class (Device): IP 20
Protection class (Device): IP 20 anthracite 1766-81 2CKA001710A3613 10
anthracite 0248/05-101 2CKA000230A0404 10/100 ivory white 1766-82 2CKA001710A3144 10/100
1) Suitable for cover telephone unit 1766-xxx and 2539-21x.
aluminium 1766-83 2CKA001710A3659 10/100
silver ) 1
Cover plate studio white 1766-84-500 2CKA001710A3992 10/100
For Busch-DigitalRadio 8215 U/8216 U. studio white, 1766-884 2CKA001710A3926 10
For Busch-Radio iNet 8216 U. matt ) 1
For Busch-Radio BTconnect 8217 U.
black matt ) 1 1766-885 2CKA001710A3903 10
1) Surface painted.
anthracite 8252-81 2CKA008200A0050 10
ivory white 8252-82 2CKA008200A0051 10 Cover plate
with metal mounting plate
aluminium 8252-83 2CKA008200A0052 10 With fixing claws.
silver ) loudspeaker inserts and cover.
1
studio white 8252-84 2CKA008200A0053 10 With screw-type terminals.
Conductor cross-sections up to 4 mm² rigid.
studio white, 8252-884 2CKA008200A0122 10 Protection class (Device): IP 20
matt )
1
anthracite 1751-81 2CKA001723A0253 10
black matt ) 8252-885 2CKA008200A0125 10
1
ivory white 1751-82 2CKA001723A0239 10
1) Surface painted.
aluminium 1751-83 2CKA001723A0254 10
silver ) 1
studio white 1751-84 2CKA001723A0240 10/100
studio white, 1751-884 2CKA001723A0260 10
matt ) 1
black matt ) 1 1751-885 2CKA001723A0259 10
1) Surface painted.
