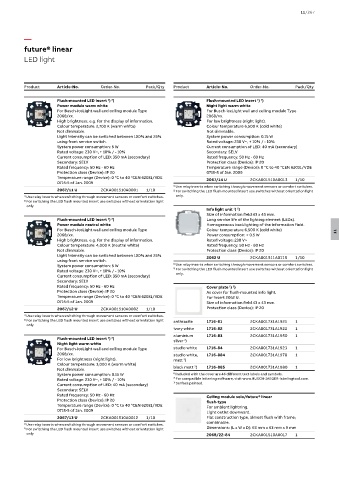

Page 1373 - Din prodcuts 2020

11/267

—
future® linear
LED light

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Flush-mounted LED insert ) ) Flush-mounted LED insert ) )
2
1
2
Power module warm white Night light warm white
For Busch-iceLight wall and ceiling module Type For Busch-iceLight wall and ceiling module Type
2068/xx. 2068/xx.
High brightness, e.g. for the display of information. For low brightness (night light).
Colour temperature: 2,700 K (warm white) Colour temperature 6,500 K (cold white)
Not dimmable. Not dimmable.
Light intensity can be switched between 100% and 25% System power consumption: 0.15 W
using front service switch. Rated voltage: 230 V~, + 10% / - 10%
System power consumption: 5 W Current consumption of LED: 40 mA (secondary)
Rated voltage: 230 V~, + 10% / - 10% Secondary: SELV
Current consumption of LED: 350 mA (secondary) Rated frequency: 50 Hz - 60 Hz
Secondary: SELV Protection class (Device): IP 20
Rated frequency: 50 Hz - 60 Hz Temperature range (Device): 0 °C to 40 °CEN 62031/VDE
Protection class (Device): IP 20 0715-5 of Jan. 2009
Temperature range (Device): 0 °C to 40 °CEN 62031/VDE 2067/14 U 2CKA001510A0013 1/10
0715-5 of Jan. 2009
1) Use relay inserts when switching through movement sensors or comfort switches.
2067/11 U 2CKA001510A0001 1/10 2) For switching the LED flush mounted insert use switches without orientation light
1) Use relay inserts when switching through movement sensors or comfort switches. only.
2) For switching the LED flush mounted insert use switches without orientation light
only.
Info light unit ) )
1
2
Size of information field 43 x 43 mm.
2
Flush-mounted LED insert ) ) Long service life of the lighting element (LEDs).
1
Power module neutral white Homogeneous backlighting of the information field.
For Busch-iceLight wall and ceiling module Type Colour temperature 6,500 K (cold white) 11
2068/xx. Power consumption: < 0.5 W
High brightness, e.g. for the display of information. Rated voltage: 230 V~
Colour temperature: 4,000 K (neutral white) Rated frequency: 50 Hz - 60 Hz
Not dimmable. Protection class (Device): IP 20
Light intensity can be switched between 100% and 25% 2062 U 2CKA001511A0115 1/10
using front service switch.
System power consumption: 5 W 1) Use relay inserts when switching through movement sensors or comfort switches.
Rated voltage: 230 V~, + 10% / - 10% 2) For switching the LED flush mounted insert use switches without orientation light
Current consumption of LED: 350 mA (secondary) only.
Secondary: SELV
Rated frequency: 50 Hz - 60 Hz Cover plate ) )
1
2
Protection class (Device): IP 20 As cover for flush-mounted info light.
Temperature range (Device): 0 °C to 40 °CEN 62031/VDE For insert 2062 U.
0715-5 of Jan. 2009 Size of information field 43 x 43 mm.
2067/12 U 2CKA001510A0002 1/10 Protection class (Device): IP 20
1) Use relay inserts when switching through movement sensors or comfort switches.
2) For switching the LED flush mounted insert use switches without orientation light anthracite 1716-81 2CKA001731A1921 1
only.
ivory white 1716-82 2CKA001731A1922 1
aluminium 1716-83 2CKA001731A1950 1
Flush-mounted LED insert ) ) silver ) 3
1
2
Night light warm white
For Busch-iceLight wall and ceiling module Type studio white 1716-84 2CKA001731A1923 1
2068/xx. studio white, 1716-884 2CKA001731A1978 1
For low brightness (night light). matt ) 3
Colour temperature: 3,000 K (warm white) 3
Not dimmable. black matt ) 1716-885 2CKA001731A1980 1
System power consumption: 0.15 W 1) Included with the cover are 46 different text labels and symbols.
Rated voltage: 230 V~, + 10% / - 10% 2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Current consumption of LED: 40 mA (secondary) 3) Surface painted.
Secondary: SELV
Rated frequency: 50 Hz - 60 Hz Ceiling module solo/future® linear
Protection class (Device): IP 20 flush-type
Temperature range (Device): 0 °C to 40 °CEN 62031/VDE For ambient lightning.
0715-5 of Jan. 2009 Light outlet downward.
2067/13 U 2CKA001510A0012 1/10 Flat construction type, almost flush with frame;
combinable.
1) Use relay inserts when switching through movement sensors or comfort switches.
Dimensions: (L x W x D): 63 mm x 63 mm x 9 mm
2) For switching the LED flush mounted insert use switches without orientation light
only. 2068/22-84 2CKA001510A0017 1
