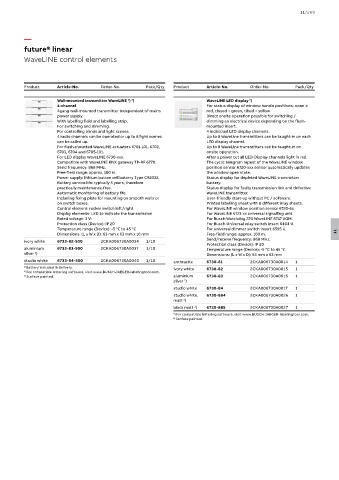

11/269

—
future® linear
WaveLINE control elements

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Wall-mounted transmitter WaveLINE ) ) WaveLINE LED display )
1
2
4-channel For status display of window handle positions: open =
4gang wall-mounted transmitter independent of mains red, closed = green, tilted = yellow.
power supply. Direct onsite operation possible for switching /
With labelling field and labelling strip. dimming an electrical device depending on the flush-
For switching and dimming. mounted insert.
For controlling blinds and light scenes. 4 individual LED display channels.
4 radio channels can be operated or up to 8 light scenes Up to 8 WaveLine transmitters can be taught-in on each
can be called up. LED display channel.
For flush-mounted WaveLINE actuators 6701-101, 6702, Up to 8 WaveLine transmitters can be taught-in on
6703, 6704 and 6705-101. onsite operation.
For LED display WaveLINE 6730-xxx. After a power cut all LED-Display channels light in red.
Compatible with WaveLINE KNX gateway TP-RF 6770. The cyclic telegram repeat of the WaveLINE window
Send frequency: 868 MHz. position sensor 6720-xxx sensor automatically updates
Free-field range: approx. 100 m. the window open state.
Power supply: lithium button cell battery Type CR2032. Status display for depleted WaveLINE transmitter
Battery service life: typically 5 years, therefore battery.
practically maintenance-free. Status display for faulty transmission link and defective
Automatic monitoring of battery life. WaveLINE transmitter.
Including fixing plate for mounting on smooth walls or User-friendly start-up without PC / software.
on switch boxes. Printed labelling sheet with 8 different inlay sheets.
Control element: rocker switch left/right For WaveLINE window position sensor 6720-6x.
Display elements: LED to indicate the transmission For WaveLINE 6721-xx universal signalling unit.
Rated voltage: 3 V- For Busch-Watchdog 220 WaveLINE 6747 AGM.
Protection class (Device): IP 20 For Busch-Universal relay switch insert 6404 U.
Temperature range (Device): -5 °C to 45 °C For universal dimmer switch insert 6595 U.
Dimensions: (L x W x D): 63 mm x 63 mm x 16 mm Free-field range: approx. 100 m. 11
Send/receive frequency: 868 MHz.
ivory white 6733-82-500 2CKA006730A0034 1/10
Protection class (Device): IP 20
aluminium 6733-83-500 2CKA006730A0037 1/10 Temperature range (Device): -5 °C to 45 °C
silver ) Dimensions: (L x W x D): 63 mm x 63 mm
3
studio white 6733-84-500 2CKA006730A0040 1/10 anthracite 6730-81 2CKA006730A0014 1
1) Battery included in delivery. ivory white 6730-82 2CKA006730A0015 1
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Surface painted. aluminium 6730-83 2CKA006730A0016 1
silver ) 2
studio white 6730-84 2CKA006730A0017 1
studio white, 6730-884 2CKA006730A0026 1
matt ) 2
black matt ) 2 6730-885 2CKA006730A0027 1
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
2) Surface painted.
