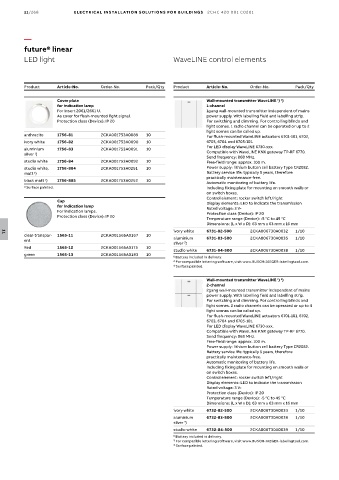

Page 1374 - Din prodcuts 2020

11/268 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
future® linear
LED light WaveLINE control elements

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate Wall-mounted transmitter WaveLINE ) )
1
2
for indication lamp 1-channel
For insert 2061/2661 U. 1gang wall-mounted transmitter independent of mains
As cover for flush-mounted light signal. power supply. With labelling field and labelling strip.
Protection class (Device): IP 20 For switching and dimming. For controlling blinds and
light scenes. 1 radio channel can be operated or up to 2
light scenes can be called up.
anthracite 1756-81 2CKA001753A0089 10 For flush-mounted WaveLINE actuators 6701-101, 6702,
ivory white 1756-82 2CKA001753A0090 10 6703, 6704 and 6705-101.
For LED display WaveLINE 6730-xxx.
aluminium 1756-83 2CKA001753A0091 10
silver ) Compatible with WaveLINE KNX gateway TP-RF 6770.
1
Send frequency: 868 MHz.
studio white 1756-84 2CKA001753A0092 10 Free-field range: approx. 100 m.
studio white, 1756-884 2CKA001753A0251 10 Power supply: lithium button cell battery Type CR2032.
1
matt ) Battery service life: typically 5 years, therefore
practically maintenance-free.
black matt ) 1756-885 2CKA001753A0252 10
1
Automatic monitoring of battery life.
1) Surface painted. Including fixing plate for mounting on smooth walls or
on switch boxes.
Control element: rocker switch left/right
Cap Display elements: LED to indicate the transmission
for indication lamp Rated voltage: 3 V-
For indication lamps. Protection class (Device): IP 20
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 63 mm x 63 mm x 16 mm
ivory white 6731-82-500 2CKA006730A0032 1/10
clear-transpar- 1565-11 2CKA001565A0167 10
11
ent aluminium 6731-83-500 2CKA006730A0035 1/10
silver ) 3
Red 1565-12 2CKA001565A0175 10
studio white 6731-84-500 2CKA006730A0038 1/10
green 1565-13 2CKA001565A0183 10 1) Battery included in delivery.
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Surface painted.
Wall-mounted transmitter WaveLINE ) )
1
2
2-channel
2gang wall-mounted transmitter independent of mains
power supply. With labelling field and labelling strip.
For switching and dimming. For controlling blinds and
light scenes. 2 radio channels can be operated or up to 4
light scenes can be called up.
For flush-mounted WaveLINE actuators 6701-101, 6702,
6703, 6704 and 6705-101.
For LED display WaveLINE 6730-xxx.
Compatible with WaveLINE KNX gateway TP-RF 6770.
Send frequency: 868 MHz.
Free-field range: approx. 100 m.
Power supply: lithium button cell battery Type CR2032.
Battery service life: typically 5 years, therefore
practically maintenance-free.
Automatic monitoring of battery life.
Including fixing plate for mounting on smooth walls or
on switch boxes.
Control element: rocker switch left/right
Display elements: LED to indicate the transmission
Rated voltage: 3 V-
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 63 mm x 63 mm x 16 mm
ivory white 6732-82-500 2CKA006730A0033 1/10
aluminium 6732-83-500 2CKA006730A0036 1/10
silver ) 3
studio white 6732-84-500 2CKA006730A0039 1/10
1) Battery included in delivery.
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
3) Surface painted.
