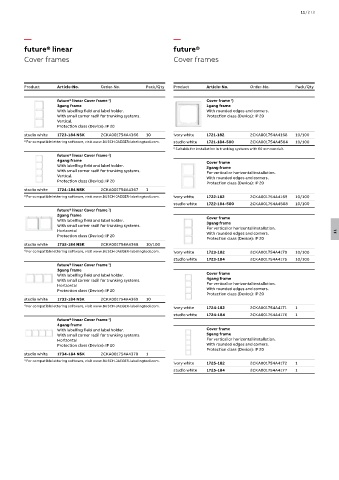

Page 1379 - Din prodcuts 2020

11/273

— —
future® linear future®
Cover frames Cover frames

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

future® linear Cover frame ) 1 Cover frame ) 1
3gang frame 1gang frame
With labelling field and label holder. With rounded edges and corners.
With small corner radii for trunking systems. Protection class (Device): IP 20
Vertical.
Protection class (Device): IP 20
studio white 1723-184 NSK 2CKA001754A4366 10 ivory white 1721-182 2CKA001754A4168 10/100
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. studio white 1721-184-500 2CKA001754A4504 10/100
1) Suitable for installation in trunking systems with 80 mm conduit.
future® linear Cover frame ) 1
4gang frame Cover frame
With labelling field and label holder. 2gang frame
With small corner radii for trunking systems. For vertical or horizontal installation.
Vertical. With rounded edges and corners.
Protection class (Device): IP 20 Protection class (Device): IP 20
studio white 1724-184 NSK 2CKA001754A4367 1
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. ivory white 1722-182 2CKA001754A4169 10/100
studio white 1722-184-500 2CKA001754A4508 10/100
future® linear Cover frame ) 1
2gang frame Cover frame
With labelling field and label holder. 3gang frame
With small corner radii for trunking systems. For vertical or horizontal installation.
Horizontal With rounded edges and corners. 11
Protection class (Device): IP 20
Protection class (Device): IP 20
studio white 1732-184 NSK 2CKA001754A4368 10/100
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
ivory white 1723-182 2CKA001754A4170 10/100
studio white 1723-184 2CKA001754A4175 10/100
future® linear Cover frame ) 1
3gang frame
With labelling field and label holder. Cover frame
With small corner radii for trunking systems. 4gang frame
Horizontal For vertical or horizontal installation.
Protection class (Device): IP 20 With rounded edges and corners.
Protection class (Device): IP 20
studio white 1733-184 NSK 2CKA001754A4369 10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
ivory white 1724-182 2CKA001754A4171 1
studio white 1724-184 2CKA001754A4176 1
future® linear Cover frame ) 1
4gang frame
With labelling field and label holder. Cover frame
With small corner radii for trunking systems. 5gang frame
Horizontal For vertical or horizontal installation.
Protection class (Device): IP 20 With rounded edges and corners.
Protection class (Device): IP 20
studio white 1734-184 NSK 2CKA001754A4370 1
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
ivory white 1725-182 2CKA001754A4172 1
studio white 1725-184 2CKA001754A4177 1
