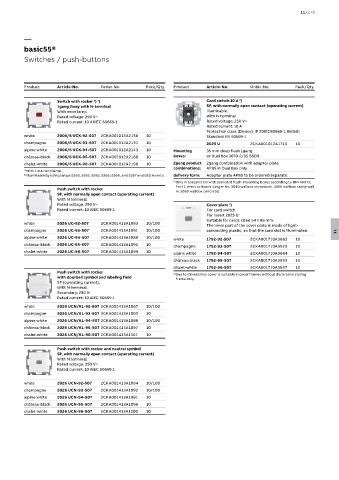

11/279

—
basic55®
Switches / push-buttons

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Switch with rocker ) ) Card switch 10 A )
1
2
1gang 2way with N-terminal SP, with normally open contact (operating current)
With neon lamp. Illuminable.
Rated voltage: 250 V~ With N terminal.
Rated current: 10 AXIEC 60669-1 Rated voltage: 250 V~
Rated current: 10 A
Protection class (Device): IP 20IEC60669-1, British
white 2006/6 UCK-92-507 2CKA001012A2150 10 Standard EN 60669-1
champagne 2006/6 UCK-93-507 2CKA001012A2170 10 2025 U 2CKA001012A1713 10
alpine white 2006/6 UCK-94-507 2CKA001012A2143 10 Mounting 35 mm deep flush 1gang
château-black 2006/6 UCK-95-507 2CKA001012A2180 10 boxes: or Dual Box 3070-2/35 BSDB.
chalet-white 2006/6 UCK-96-507 2CKA001012A2190 10 2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) With 1 mA neon lamp.
2) Illuminable by using lamps 8360, 8362, 8363, 8365, 8366, and 8367 and LED inserts. delivery form: Adapter plate APBS to be ordered separate.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Push switch with rocker or 3060 wallbox concrete)
SP, with normally open contact (operating current)
With N terminal.
Rated voltage: 250 V~ Cover plate )
1
Rated current: 10 AIEC 60669-1 For card switch.
For insert 2025 U.
Suitable for cards sized 54 x 86 mm.
white 2026 UC-92-507 2CKA001413A1083 10/100
The inner part of the cover plate is made of light-
champagne 2026 UC-93-507 2CKA001413A1091 10/100 conducting plastic, so that the card slot is illuminated. 11
alpine white 2026 UC-94-507 2CKA001413A1080 10/100 white 1792-92-507 2CKA001710A3865 10
château-black 2026 UC-95-507 2CKA001413A1095 10 champagne 1792-93-507 2CKA001710A3929 10
chalet-white 2026 UC-96-507 2CKA001413A1099 10 alpine white 1792-94-507 2CKA001710A3864 10
château-black 1792-95-507 2CKA001710A3933 10
chalet-white 1792-96-507 2CKA001710A3937 10
Push switch with rocker 1) Due to dimensions cover is suitable in cover frames without decorative styling
with doorbell symbol and labeling field frame only.
SP (operating current),
With N terminal.
Secondary: 250 V-
Rated current: 10 AIEC 60669-1
white 2026 UCN/KL-92-507 2CKA001413A1087 10/100
champagne 2026 UCN/KL-93-507 2CKA001413A1093 10
alpine white 2026 UCN/KL-94-507 2CKA001413A1086 10/100
château-black 2026 UCN/KL-95-507 2CKA001413A1097 10
chalet-white 2026 UCN/KL-96-507 2CKA001413A1101 10

Push switch with rocker and neutral symbol
SP, with normally open contact (operating current)
With N terminal.
Rated voltage: 250 V~
Rated current: 10 AIEC 60669-1

white 2026 UCN-92-507 2CKA001413A1084 10/100
champagne 2026 UCN-93-507 2CKA001413A1092 10/100
alpine white 2026 UCN-94-507 2CKA001413A1081 10
château-black 2026 UCN-95-507 2CKA001413A1096 10
chalet-white 2026 UCN-96-507 2CKA001413A1100 10
