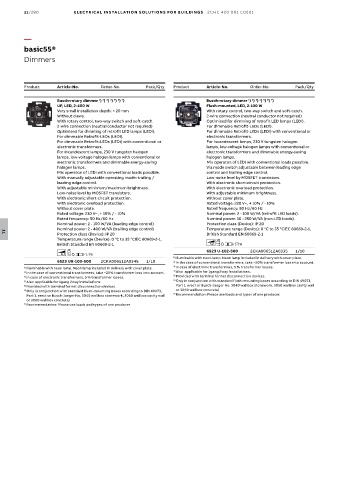

11/280 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
basic55®
Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-rotary dimmer ) ) ) ) ) ) ) Busch-rotary dimmer ) ) ) ) ) ) )
5
6
1
4
3
2
7
7
4
5
6
1
2
3
UP, LED, 2-400 W Flush-mounted, LED, 2-100 W
Very small installation depth: < 20 mm With rotary control, two-way switch and soft-catch.
Without claws. 2-wire connection (neutral conductor not required)
With rotary control, two-way switch and soft-catch. Optimised for dimming of retrofit LED lamps (LEDi).
2-wire connection (neutral conductor not required) For dimmable Retrofit-LEDs (LEDi).
Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or
For dimmable Retrofit-LEDs (LEDi). electronic transformers.
For dimmable Retrofit-LEDs (LEDi) with conventional or For incandescent lamps, 230 V tungsten halogen
electronic transformers. lamps, low-voltage halogen lamps with conventional or
For incandescent lamps, 230 V tungsten halogen electronic transformers and dimmable energy-saving
lamps, low-voltage halogen lamps with conventional or halogen lamps.
electronic transformers and dimmable energy-saving Mix operaton of LEDi with conventional loads possible.
halogen lamps. Via mode switch adjustable between leading edge
Mix operaton of LEDi with conventional loads possible. control and trailing edge control.
With manually adjustable operating mode: trailing / Low-noise level by MOSFET transistors.
leading edge control. With electronic short-circuit protection.
With adjustable minimum/maximum brightness. With electronic overload protection.
Low-noise level by MOSFET transistors. With adjustable minimum brightness.
With electronic short-circuit protection. Without cover plate.
With electronic overload protection. Rated voltage: 230 V~, + 10% / - 10%
Without cover plate. Rated frequency: 50 Hz/60 Hz
Rated voltage: 230 V~, + 10% / - 10% Nominal power: 2 - 100 W/VA (retrofit LED loads).
Rated frequency: 50 Hz/60 Hz Nominal power: 10 - 250 W/VA (non-LED loads).
Nominal power: 2 - 100 W/VA (leading edge control) Protection class (Device): IP 20
Nominal power: 2 - 400 W/VA (trailing edge control) Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1,
Protection class (Device): IP 20 British Standard EN 60669-2-1
11
Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1,
British Standard EN 60669-2-1
6523 U-102-500 2CKA006512A0335 1/10

1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
6523 UR-103-500 2CKA006512A0345 1/10 2) In the case of conventional transformers, take ~20% transformer loss into account.
3) In case of electronic transformers, 5 % transformer losses.
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
4) Also applicable for 1gang 2way installations.
2) In the case of conventional transformers, take ~20% transformer loss into account.
5) Provided with terminal for net disconnection devices.
3) In case of electronic transformers, 5 % transformer losses.
6) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
4) Also applicable for 1gang 2way installations.
5) Provided with terminal for net disconnection devices. Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
6) Only in conjunction with standard flush-mounting boxes according to DIN 49073, or 3060 wallbox concrete)
7) Recommendation: Please use loads and types of one producer.
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
7) Recommendation: Please use loads and types of one producer.
