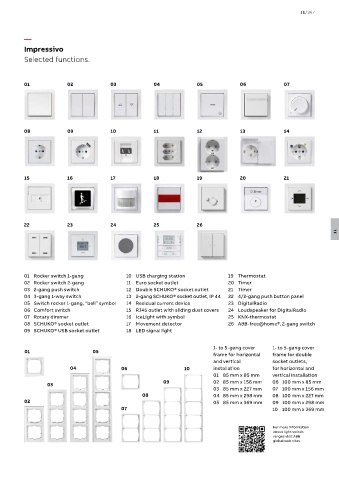

Impressivo
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

15 16 17 18 19 20 21

22 23 24 25 26
11

01 Rocker switch 1-gang 10 USB charging station 19 Thermostat
02 Rocker switch 2-gang 11 Euro socket outlet 20 Timer
03 2-gang push switch 12 Double SCHUKO® socket outlet 21 Timer
04 3-gang 1-way switch 13 2-gang SCHUKO® socket outlet, IP 44 22 4/2-gang push button panel
05 Switch rocker 1-gang, “bell” symbol 14 Residual current device 23 DigitalRadio
06 Comfort switch 15 RJ45 outlet with sliding dust covers 24 Loudspeaker for DigitalRadio
07 Rotary dimmer 16 IceLight with symbol 25 KNX-thermostat
08 SCHUKO® socket outlet 17 Movement detector 26 ABB-free@home®, 2-gang switch
09 SCHUKO® USB socket outlet 18 LED signal light

1- to 5-gang cover 1- to 5-gang cover
01 05
frame for horizontal frame for double
and vertical socket outlets,
04 06 10 installation for horizontal and
01 85 mm x 85 mm vertical installation
09 02 85 mm x 156 mm 06 100 mm x 85 mm
03
03 85 mm x 227 mm 07 100 mm x 156 mm
08 04 85 mm x 298 mm 08 100 mm x 227 mm
02 05 85 mm x 369 mm 09 100 mm x 298 mm
07 10 100 mm x 369 mm

For more information
about light switch
ranges visit ABB
global web sites.
