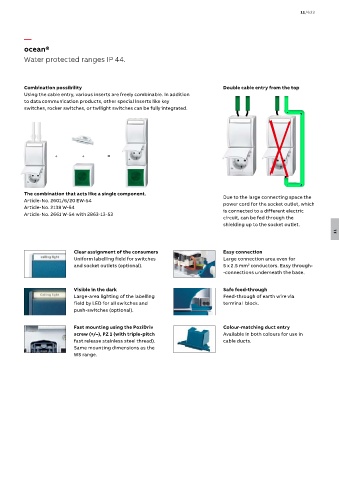

ocean®
Water protected ranges IP 44.

Combination possibility Double cable entry from the top
Using the cable entry, various inserts are freely combinable. In addition
to data communication products, other special inserts like key
switches, rocker switches, or twilight switches can be fully integrated.

+ + =

The combination that acts like a single component.
Article-No. 2601/6/20 EW-54 Due to the large connecting space the
power cord for the socket outlet, which
Article-No. 2138 W-54 is connected to a different electric
Article-No. 2661 W-54 with 2863-13-53
circuit, can be fed through the
shielding up to the socket outlet.
11

Clear assignment of the consumers Easy connection
Uniform labelling field for switches Large connection area even for
and socket outlets (optional). 5 x 2.5 mm conductors. Easy through-
2
-connections underneath the base.

Visible in the dark Safe feed-through
Large-area lighting of the labelling Feed-through of earth wire via
field by LED for all switches and terminal block.
push-switches (optional).

Fast mounting using the PoziDriv Colour-matching duct entry
screw (+/–), PZ 1 (with triple-pitch Available in both colours for use in
fast release stainless steel thread). cable ducts.
Same mounting dimensions as the
WS range.
