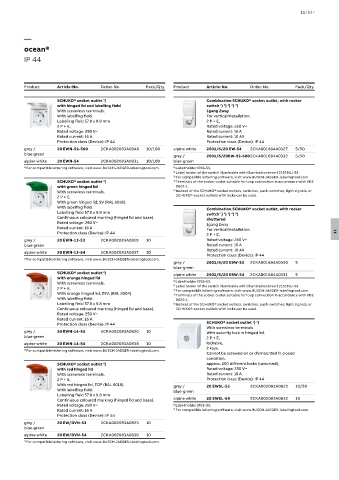

Page 1743 - Din prodcuts 2020

11/637

—
ocean®
IP 44

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
SCHUKO® socket outlet ) Combination SCHUKO® socket outlet, with rocker
5
1
2
with hinged lid and labelling field switch ) ) ) ) )
3
4
With screwless terminals. 1gang 2way
With labelling field. For vertical installation.
Labelling field 57.8 x 9.8 mm 2 P + E,
2 P + E, Rated voltage: 250 V~
Rated voltage: 250 V~ Rated current: 16 A
Rated current: 16 A Rated current: 10 AX
Protection class (Device): IP 44 Protection class (Device): IP 44
grey / 20 EWN-53-500 2CKA002083A0848 10/100 alpine white 2601/6/20 EW-54 2CKA001684A0327 5/50
blue-green
grey / 2601/6/20EW-53-5002CKA001684A0332 5/50
alpine white 20 EWN-54 2CKA002083A0831 10/100 blue-green
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. 1) Label holder 1763-53.
2) Label holder of the switch illuminable with illumination insert 2152 NLI-53.
3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
SCHUKO® socket outlet ) 4) Terminals of the socket outlet suitable for loop connection in accordance with VDE
1
with green hinged lid 0620-1.
With screwless terminals. 5) Instead of the SCHUKO® socket outlets, switches, push-switches, light signals, or
2 P + E, SCHUKO®-socket outlets with locks can be used.
With green hinged lid, SV (RAL 6018).
With labelling field. Combination SCHUKO® socket outlet, with rocker
Labelling field 57.8 x 9.8 mm switch ) ) ) ) )
5
1
4
2
3
Continuous coloured marking (hinged lid and base). shuttered
Rated voltage: 250 V~ 1gang 2way
Rated current: 16 A For vertical installation.
Protection class (Device): IP 44 2 P + E, 11
grey / 20 EWN-13-53 2CKA002083A0819 10 Rated voltage: 250 V~
blue-green Rated current: 16 A
Rated current: 10 AX
alpine white 20 EWN-13-54 2CKA002083A0837 10
Protection class (Device): IP 44
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
grey / 2601/6/20 EBW-53 2CKA001684A0330 5
blue-green
SCHUKO® socket outlet ) alpine white 2601/6/20 EBW-54 2CKA001684A0331 5
1
with orange hinged lid
With screwless terminals. 1) Label holder 1763-53.
2) Label holder of the switch illuminable with illumination insert 2152 NLI-53.
2 P + E, 3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
With orange hinged lid, ZSV, (RAL 2004). 4) Terminals of the socket outlet suitable for loop connection in accordance with VDE
With labelling field. 0620-1.
Labelling field 57.8 x 9.8 mm 5) Instead of the SCHUKO® socket outlets, switches, push-switches, light signals, or
Continuous coloured marking (hinged lid and base). SCHUKO®-socket outlets with locks can be used.
Rated voltage: 250 V~
Rated current: 16 A
1
2
Protection class (Device): IP 44 SCHUKO® socket outlet ) )
With screwless terminals.
grey / 20 EWN-14-53 2CKA002083A0820 10 With security lock in hinged lid.
blue-green 2 P + E,
alpine white 20 EWN-14-54 2CKA002083A0838 10 lockable,
2 keys.
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Cannot be screwed on or dismounted in closed
condition.
SCHUKO® socket outlet ) approx. 200 different locks (unsorted),
1
with red hinged lid Rated voltage: 250 V~
With screwless terminals. Rated current: 16 A
2 P + E, Protection class (Device): IP 44
With red hinged lid, EDP (RAL 6018). grey / 20 EWSL-53 2CKA002083A0822 10/50
With labelling field. blue-green
Labelling field 57.8 x 9.8 mm
Continuous coloured marking (hinged lid and base). alpine white 20 EWSL-54 2CKA002083A0832 10
Rated voltage: 250 V~ 1) Label holder 1763-53.
Rated current: 16 A 2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Protection class (Device): IP 44
grey / 20 EW/DVN-53 2CKA002083A0825 10
blue-green
alpine white 20 EW/DVN-54 2CKA002083A0839 10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
