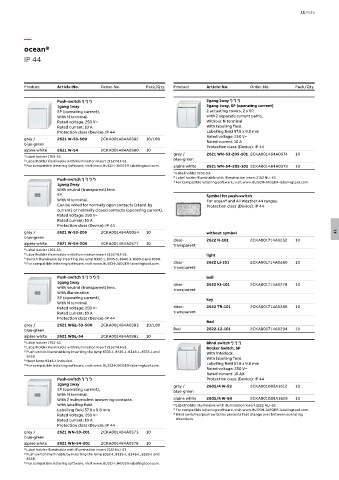

Page 1741 - Din prodcuts 2020

11/635

—
ocean®
IP 44

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
1
2
Push-switch ) ) ) 3 2gang 1way ) ) )
2
1
1gang 1way 2gang 1way, SP (operating current)
SP (operating current), 2 actuating covers, 2 x SP,
With N terminal. with 2 separate current paths,
Rated voltage: 250 V~ Without N terminal
Rated current: 10 A With labelling field.
Protection class (Device): IP 44 Labelling field 57.8 x 9.8 mm
Rated voltage: 250 V~
grey / 2621 W-53-500 2CKA001484A0382 10/100
blue-green Rated current: 10 A
Protection class (Device): IP 44
alpine white 2621 W-54 2CKA001484A0380 10
grey / 2621 WN-53-205-101 2CKA001484A0374 10
1) Label holder 1763-53.
2) Label holder illuminable with illumination insert 2152 NLI-53. blue-green
3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. alpine white 2621 WN-54-205-101 2CKA001484A0379 10
1) Label holder 1763-53.
Push-switch ) ) ) ) 2) Label holder illuminable with illumination insert 2152 NLI-53.
1
4
3
2
3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
1gang 2way
With neutral (transparent) lens.
SP, Symbol for push-switch
With N terminal. For ocean® and All Weather 44 ranges.
Can be wired for normally open contacts (stand-by Protection class (Device): IP 44
current) or normally closed contacts (operating current).
Rated voltage: 250 V~
Rated current: 10 A
Protection class (Device): IP 44
grey / 2621 W-53-206 2CKA001484A0054 10 without symbol 11
blue-green clear- 2622 N-101 2CKA001714A0252 10
alpine white 2621 W-54-206 2CKA001484A0377 10 transparent
1) Label holder 1763-53.
2) Label holder illuminable with illumination insert 2152 NLI-53.
light
3) Switch illuminable by inserting the lamp 8332-1, 8335-1, 8346-1, 8333-1 and 8358.
4) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. clear- 2622 LI-101 2CKA001714A0260 10
transparent
5
1
3
4
Push-switch ) ) ) ) ) bell
2
1gang 1way clear- 2622 KI-101 2CKA001714A0278 10
With neutral (transparent) lens. transparent
With illumination.
SP (operating current), key
With N terminal.
Rated voltage: 250 V~ clear- 2622 TR-101 2CKA001714A0286 10
Rated current: 10 A transparent
Protection class (Device): IP 44
Red
grey / 2621 WGL-53-500 2CKA001484A0383 10/100
blue-green Red 2622-12-101 2CKA001714A0294 10
alpine white 2621 WGL-54 2CKA001484A0381 10
1) Label holder 1763-53. Blind switch ) ) )
1
3
2
2) Label holder illuminable with illumination insert 2152 NLI-53. Rocker Switch, SP
3) Push switch illuminable by inserting the lamp 8332-1, 8335-1, 8346-1, 8333-1 and With interlock.
8358.
4) Neon lamp 8346-1 included. With labelling field.
5) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. Labelling field 57.8 x 9.8 mm
Rated voltage: 250 V~
Rated current: 10 AX
Push-switch ) ) ) 3 Protection class (Device): IP 44
1
2
1gang 1way grey / 2601/4 W-53 2CKA001085A1612 10
SP (operating current), blue-green
With N terminal.
With 2 independent answering contacts. alpine white 2601/4 W-54 2CKA001085A1625 10
With labelling field. 1) Label holder illuminable with illumination insert 2152 NLI-53.
Labelling field 57.8 x 9.8 mm 2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Rated voltage: 250 V~ 3) Blind switches/push switches prevents fast change over between operating
Rated current: 10 A directions.
Protection class (Device): IP 44
grey / 2621 WN-53-201 2CKA001484A0373 10
blue-green
alpine white 2621 WN-54-201 2CKA001484A0378 10
1) Label holder illuminable with illumination insert 2152 NLI-53.
2) Push switch illuminable by inserting the lamp 8332-1, 8335-1, 8346-1, 8333-1 and
8358.
3) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
