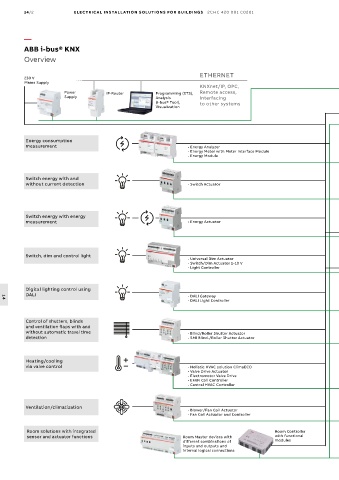

14/2 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Overview

ETHERNET
230 V
Mains Supply
KNXnet/IP, OPC,
Power IP-Router Programming (ETS), Remote access,
Supply Analysis Interfacing
(i-bus® Tool), to other systems
Visualization

Energy consumption
measurement - Energy Analyzer
- Energy Meter with Meter Interface Module
- Energy Module

Switch energy with and
without current detection - Switch Actuator

Switch energy with energy
measurement - Energy Actuator

Switch, dim and control light
- Universal Dim Actuator
- Switch/Dim Actuator 1–10 V
- Light Controller

Digital lighting control using
DALI - DALI Gateway
- DALI Light Controller
14

Control of shutters, blinds
and ventilation flaps with and
without automatic travel time - Blind/Roller Shutter Actuator
detection - SMI Blind-/Roller Shutter Actuator

Heating/cooling
via valve control - Holistic HVAC solution ClimaECO
- Valve Drive Actuator
- Electromotor Valve Drive
- EFAN Coil Controller
- Central HVAC Controller

Ventilation/climatization
- Blower/Fan Coil Actuator
- Fan Coil Actuator and Controller

Room solutions with integrated Room Controller
sensor and actuator functions Room Master devices with with functional
different combinations of modules
inputs and outputs and
internal logical connections
