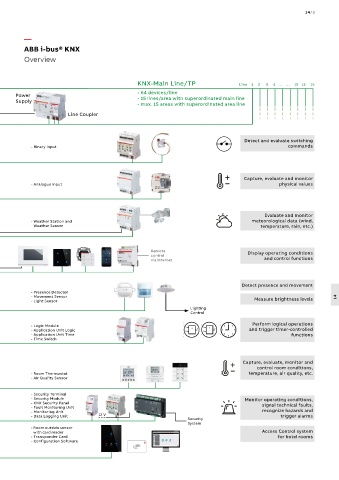

ABB i-bus® KNX
Overview

KNX-Main Line/TP Line 1 2 3 4 … … 13 14 15

- 64 devices/line
Power - 15 lines/area with superordinated main line
Supply
- max. 15 areas with superordinated area line
Line Coupler

Detect and evaluate switching
- Binary Input commands

Capture, evaluate and monitor
- Analogue Input physical values

Evaluate and monitor
- Weather Station and meteorological data (wind,
Weather Sensor temperature, rain, etc.)

Remote Display operating conditions
control
via internet and control functions

Detect presence and movement
- Presence Detector
- Movement Sensor 14
- Light Sensor Measure brightness levels
Lighting
Control

- Logic Module A A Perform logical operations
- Application Unit Logic B ≥1 y B & y and trigger timer-controlled
- Application Unit Time functions
- Time Switch

Capture, evaluate, monitor and
control room conditions,
- Room Thermostat temperature, air quality, etc.
- Air Quality Sensor

- Security Terminal
- Security Module Monitor operating conditions,
- KNX Security Panel signal technical faults,
- Fault Monitoring Unit
- Monitoring Unit recognize hazards and
- Data Logging Unit 12 V trigger alarms
Security
System
- Room outside sensor
with card reader Access Control system
- Transponder Card for hotel rooms
- Configuration Software
