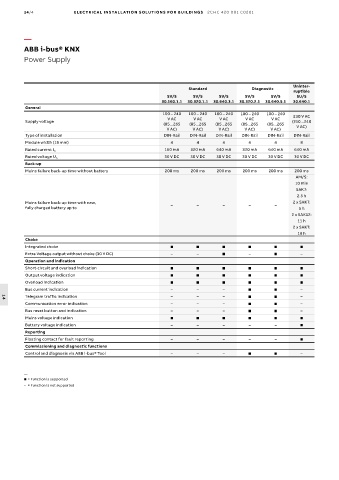

14/4 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Power Supply

Uninter-
Standard Diagnostic
ruptible
SV/S SV/S SV/S SV/S SV/S SU/S
30.160.1.1 30.320.1.1 30.640.3.1 30.320.2.1 30.640.5.1 30.640.1
General
100 – 240 100 – 240 100 – 240 100 – 240 100 – 240 230 V AC
V AC V AC V AC V AC V AC
Supply voltage (210...240
(85...265 (85...265 (85...265 (85...265 (85...265 V AC)
V AC) V AC) V AC) V AC) V AC)
Type of installation DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail DIN-Rail
Module width (18 mm) 4 4 4 4 4 8
160 mA 320 mA 640 mA 320 mA 640 mA 640 mA
Rated current I n
30 V DC 30 V DC 30 V DC 30 V DC 30 V DC 30 V DC
Rated voltage U n
Back-up
Mains failure back-up time without battery 200 ms 200 ms 200 ms 200 ms 200 ms 200 ms
AM/S:
10 min
SAK7:
2.5 h
Mains failure back-up time with new, – – – – – 2 x SAK7:
fully charged battery up to 5 h
2 x SAK12:
11 h
2 x SAK7:
16 h
Choke
Integrated choke      
Extra Voltage output without choke (30 V DC) – –  –  –
Operation and indication
Short-circuit and overload indication      
Output voltage indication      
Overload indication      
Bus current indication – – –   –
Telegram traffic indication – – –   –
14
Communication error indication – – –   –
Bus reset button and indication – – –   –
Mains voltage indication      
Battery voltage indication – – – – – 
Reporting
Floating contact for fault reporting – – – – – 
Commissioning and diagnostic functions
Control and diagnosis via ABB i-bus® Tool – – –   –

—
 = Function is supported
– = Function is not supported
