14/19

—
ABB i-bus® KNX
Multifunction Room Automation

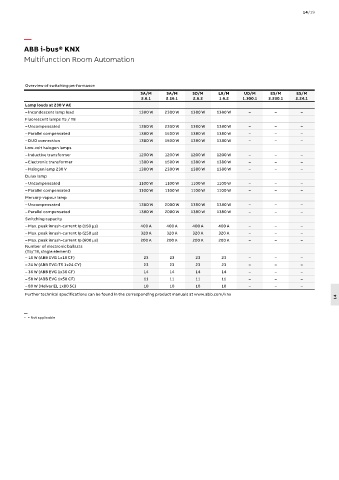

Overview of switching performance
SA/M SA/M SD/M LR/M UD/M ES/M ES/M
2.6.1 2.16.1 2.6.2 1.6.2 1.300.1 2.230.1 2.24.1
Lamp loads at 230 V AC
– Incandescent lamp load 1380 W 2300 W 1380 W 1380 W – – –
Fluorescent lamps T5 / T8
– Uncompensated 1380 W 2300 W 1380 W 1380 W – – –
– Parallel compensated 1380 W 1500 W 1380 W 1380 W – – –
– DUO connection 1380 W 1500 W 1380 W 1380 W – – –
Low-volt halogen lamps
– Inductive transformer 1200 W 1200 W 1200 W 1200 W – – –
– Electronic transformer 1380 W 1500 W 1380 W 1380 W – – –
– Halogen lamp 230 V 1380 W 2300 W 1380 W 1380 W – – –
Dulux lamp
– Uncompensated 1100 W 1100 W 1100 W 1100 W – – –
– Parallel compensated 1100 W 1100 W 1100 W 1100 W – – –
Mercury-vapour lamp
– Uncompensated 1380 W 2000 W 1380 W 1380 W – – –
– Parallel compensated 1380 W 2000 W 1380 W 1380 W – – –
Switching capacity
– Max. peak inrush-current Ip (150 μs) 400 A 400 A 400 A 400 A – – –
– Max. peak inrush-current Ip (250 μs) 320 A 320 A 320 A 320 A – – –
– Max. peak inrush-current Ip (600 μs) 200 A 200 A 200 A 200 A – – –
Number of electronic ballasts
(T5/T8, single element)
– 18 W (ABB EVG 1x18 CF) 23 23 23 23 – – –
– 24 W (ABB EVG-T5 1x24 CY) 23 23 23 23 – – –
– 36 W (ABB EVG 1x36 CF) 14 14 14 14 – – –
– 58 W (ABB EVG 1x58 CF) 11 11 11 11 – – –
– 80 W (Helvar EL 1x80 SC) 10 10 10 10 – – –
Further technical specifications can be found in the corresponding product manuals at www.abb.com/knx
14

—
– = Not applicable
