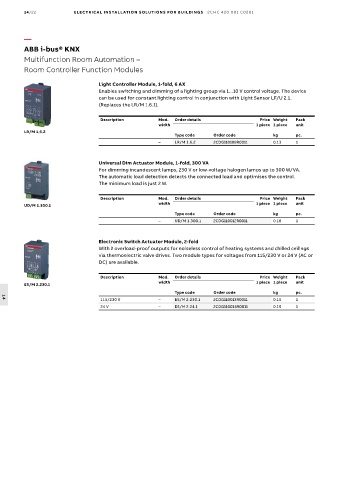

14/22 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Multifunction Room Automation –
Room Controller Function Modules

Light Controller Module, 1-fold, 6 AX
Enables switching and dimming of a lighting group via 1...10 V control voltage. The device
can be used for constant lighting control in conjunction with Light Sensor LF/U 2.1.
(Replaces the LR/M 1.6.1).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
LR/M 1.6.2
Type code Order code kg pc.
– LR/M 1.6.2 2CDG110108R0011 0.13 1

Universal Dim Actuator Module, 1-fold, 300 VA
For dimming incandescent lamps, 230 V or low-voltage halogen lamps up to 300 W/VA.
The automatic load detection detects the connected load and optimises the control.
The minimum load is just 2 W.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
UD/M 1.300.1
Type code Order code kg pc.
– UD/M 1.300.1 2CDG110012R0011 0.18 1

Electronic Switch Actuator Module, 2-fold
With 2 overload-proof outputs for noiseless control of heating systems and chilled ceilings
via thermoelectric valve drives. Two module types for voltages from 115/230 V or 24 V (AC or
DC) are available.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
ES/M 2.230.1
Type code Order code kg pc.
115/230 V – ES/M 2.230.1 2CDG110013R0011 0.15 1
14
24 V – ES/M 2.24.1 2CDG110014R0011 0.15 1
