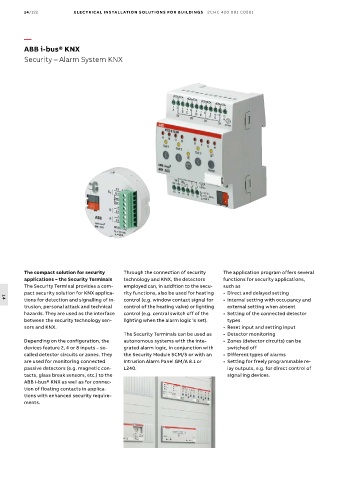

14/122 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Security – Alarm System KNX

The compact solution for security Through the connection of security The application program offers several
applications – the Security Terminals technology and KNX, the detectors functions for security applications,
The Security Terminal provides a com- employed can, in addition to the secu- such as
pact security solution for KNX applica- rity functions, also be used for heating • Direct and delayed setting
tions for detection and signalling of in- control (e.g. window contact signal for • Internal setting with occupancy and
14
trusion, personal attack and technical control of the heating valve) or lighting external setting when absent
hazards. They are used as the interface control (e.g. central switch off of the • Setting of the connected detector
between the security technology sen- lighting when the alarm logic is set). types
sors and KNX. • Reset input and setting input
The Security Terminals can be used as • Detector monitoring
Depending on the configuration, the autonomous systems with the inte- • Zones (detector circuits) can be
devices feature 2, 4 or 8 inputs – so- grated alarm logic, in conjunction with switched off
called detector circuits or zones. They the Security Module SCM/S or with an • Different types of alarms
are used for monitoring connected Intrusion Alarm Panel GM/A 8.1 or • Setting for freely programmable re-
passive detectors (e.g. magnetic con- L240. lay outputs, e.g. for direct control of
tacts, glass break sensors, etc.) to the signalling devices.
ABB i-bus® KNX as well as for connec-
tion of floating contacts in applica-
tions with enhanced security require-
ments.
